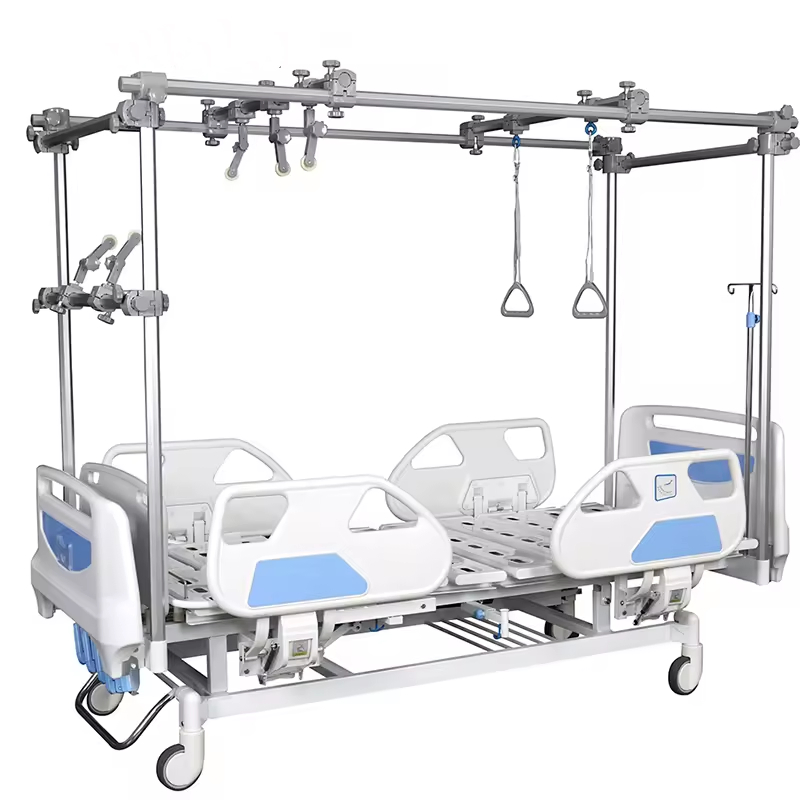

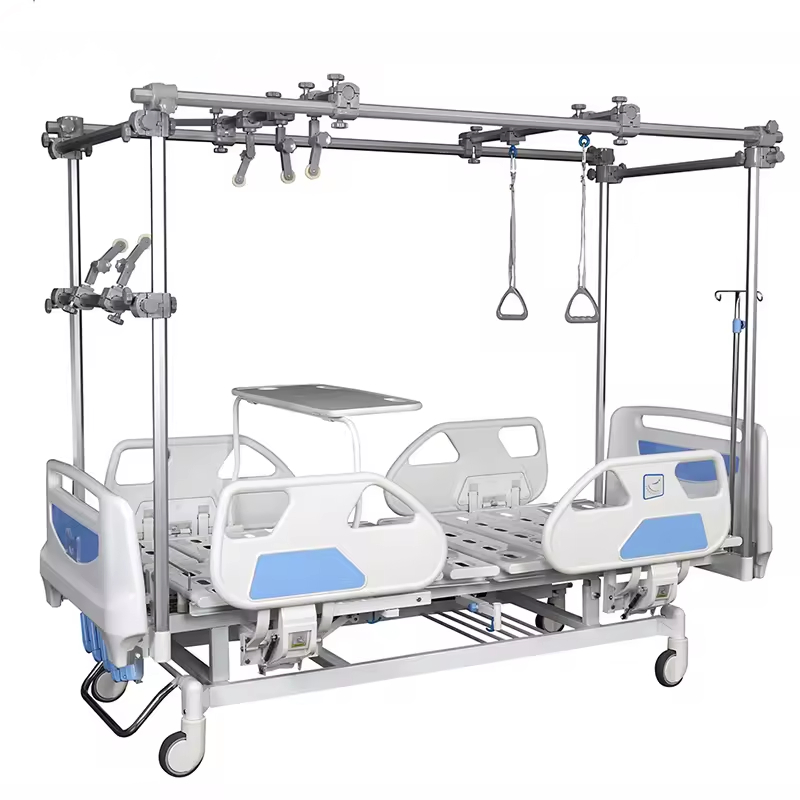

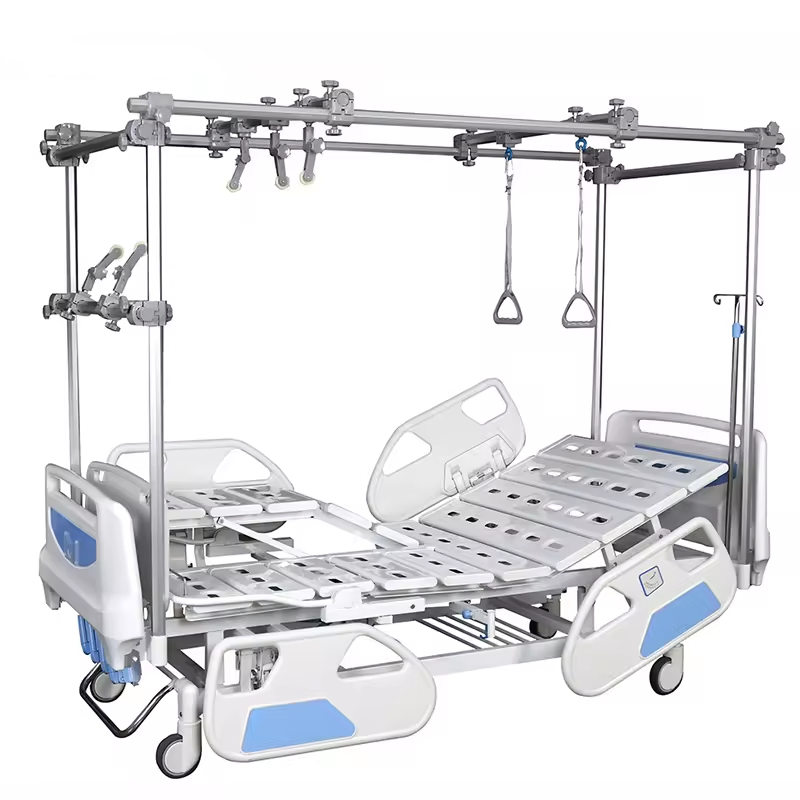

Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
1 / 5
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed

Nwgc400 Muber-Win Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed

Customization: Available
Material: Metal
Type: Electric Bed
Send Inquiry

Product Description

1

Overview

NWGC400 Movable 4 Crank Adjustable Manual Traction Orthopedic Medical Bed
Model NO.
NWGC400
Using Ambient
Hospital
Functions
Five-function
Certification
CE, FDA, ISO13485
Size
2270*1060*500mm
Warranty
2 Years
Origin
China
Condition
New
2

Technical Parameters

Parameter Item Specifications
External L*W*H 2270*1060*500mm
Mattress Platform 1925*900mm
Back-rest Adjustment 0-75°(±10°)
Knee-rest Adjustment 0-35°(±10°)
Reverse Trendelenburg 0-6°(±2°)
Trendelenburg 0-6°(±2°)
Manual Cranks 4pcs
ABS Bed Ends with Safe Lock 1set
Castors 5" Single Side, Central Locking (4pcs)
3

Product Description

🛠️ Core Functions

  • 3 Functions including back lift and leg lift (divided into right and left leg).
  • Trendelenburg and reverse Trendelenburg positioning.

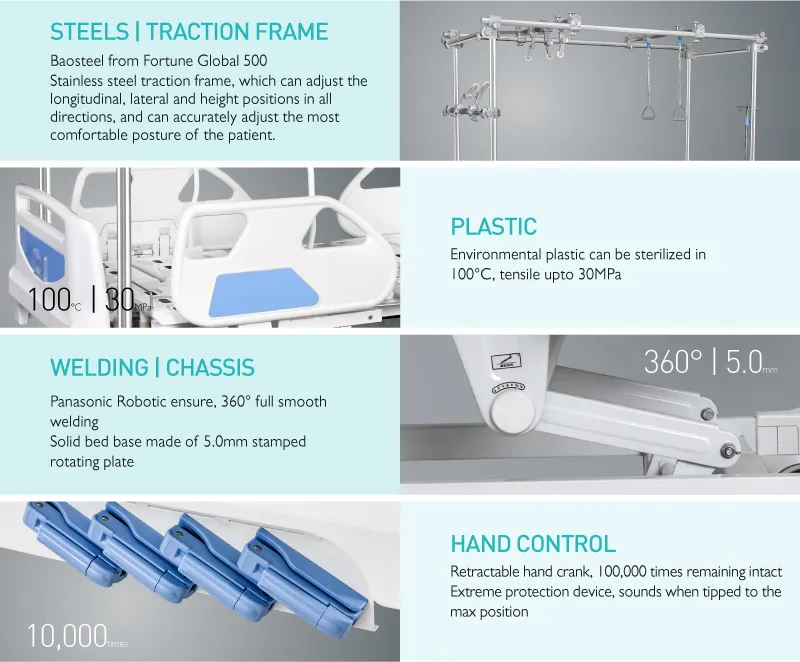

  • Stainless steel traction frame with multi-directional adjustment (longitudinal, lateral, and height).
  • Accurate adjustment capability for optimal patient posture and comfort.

📋 Accessories Details

  • Ten-piece bed design, ergonomically engineered to fit the human body.
  • 5-inch single-sided casters ensuring smooth, durable, and easy operation.
  • Equipped with a movable plastic drainage hook.
  • Full Stainless Steel IV pole with a 5kg load capacity.

Our commitment to quality is reflected in our adherence to international standards. This orthopedic medical bed complies with safety regulations such as 93/42/EEC and IEC 60601, and our production processes are certified under ISO-9001, ISO-13485, and ISO-14001. We focus on providing modern solutions for the global healthcare system, serving numerous medical institutions worldwide.

4

Detailed Photos

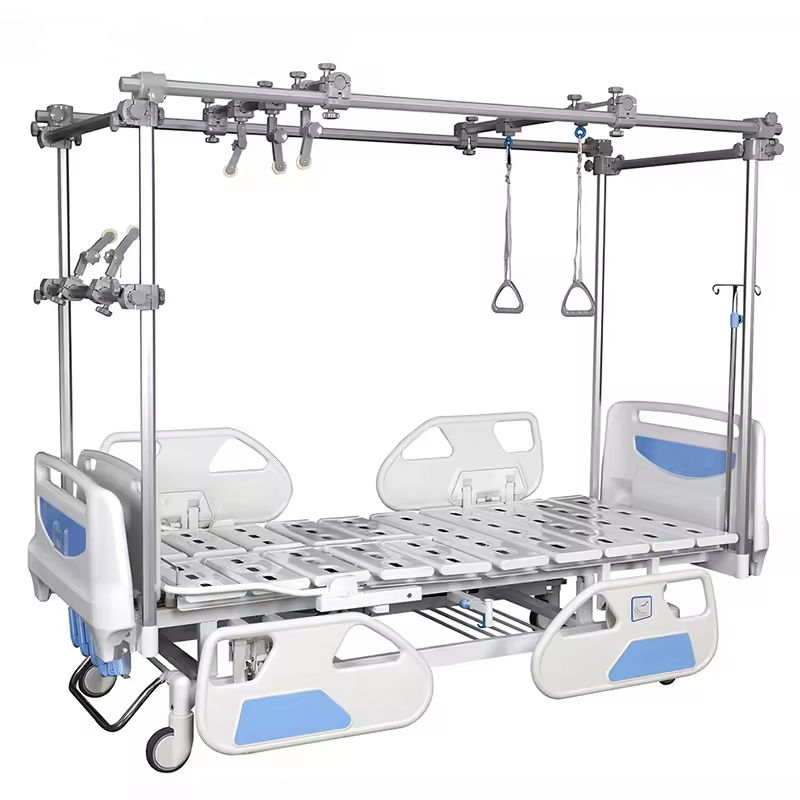

Orthopedic Medical Bed Main View
Traction Frame Detail
Manual Crank System
Caster and Brake System
Bed End Detail
Mattress Platform View
Adjustable Components
Side Rail and Support
?

Frequently Asked Questions

What are the primary functions of this orthopedic bed?
The NWGC400 features four manual cranks that control backrest adjustment, leg adjustment (independent left and right), and Trendelenburg/Reverse Trendelenburg positions.
Is the traction frame adjustable?
Yes, the stainless steel traction frame is designed for full versatility, allowing for longitudinal, lateral, and height adjustments to suit specific patient needs.
What certifications does this medical bed hold?
This product is fully certified with CE, FDA, and ISO13485 standards, ensuring it meets international quality and safety requirements for medical furniture.
What is the warranty period for the NWGC400?
We provide a 2-year warranty on this medical bed, covering manufacturing defects and ensuring long-term reliability in a hospital environment.
How many sections is the bed platform divided into?
The bed features a ten-piece platform designed for superior ergonomics, providing better support and comfort compared to standard flat-bed designs.
What type of castors are used on this bed?
It is equipped with 5-inch single-sided castors with a central locking system for easy maneuverability and secure positioning.
