Manual Orthopedic Hospital Bed Full Orthopedic Traction (MS-Q700)

1 / 5

Manual Orthopedic Hospital Bed Full Orthopedic Traction (MS-Q700)

Material:	Aluminum Alloy
Type:	Orthopedic Bed
Folded:	Unfolded

Send Inquiry

Product Description

Basic Information

Model NO.

MS-Q700

Using Ambient

Hospital

Function

Two-function

Certification

CE, FDA, ISO13485

Condition

New

G.W / N.W

125 Kg / 118 Kg

Specification

2080*980*500mm

Origin

China

Capacity

1000PCS/Year

HS Code

9018193010

Product Description

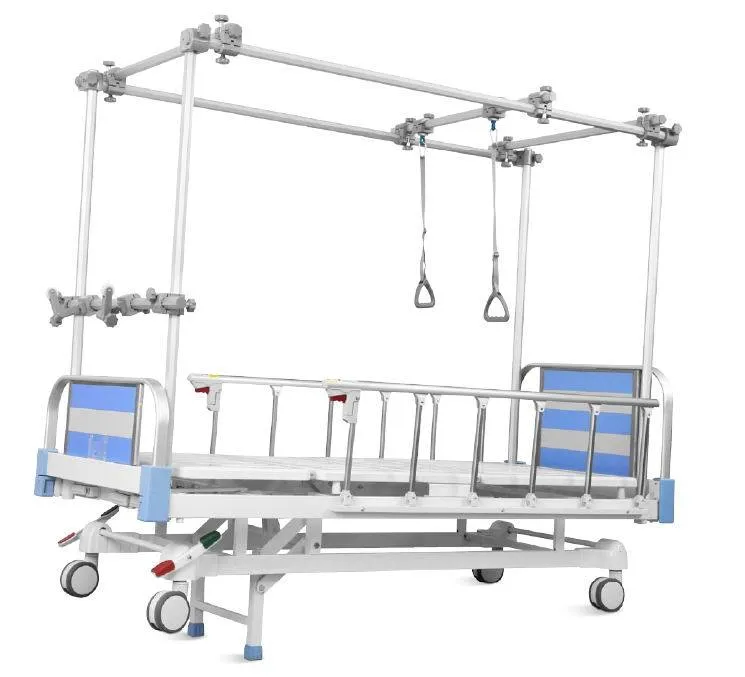

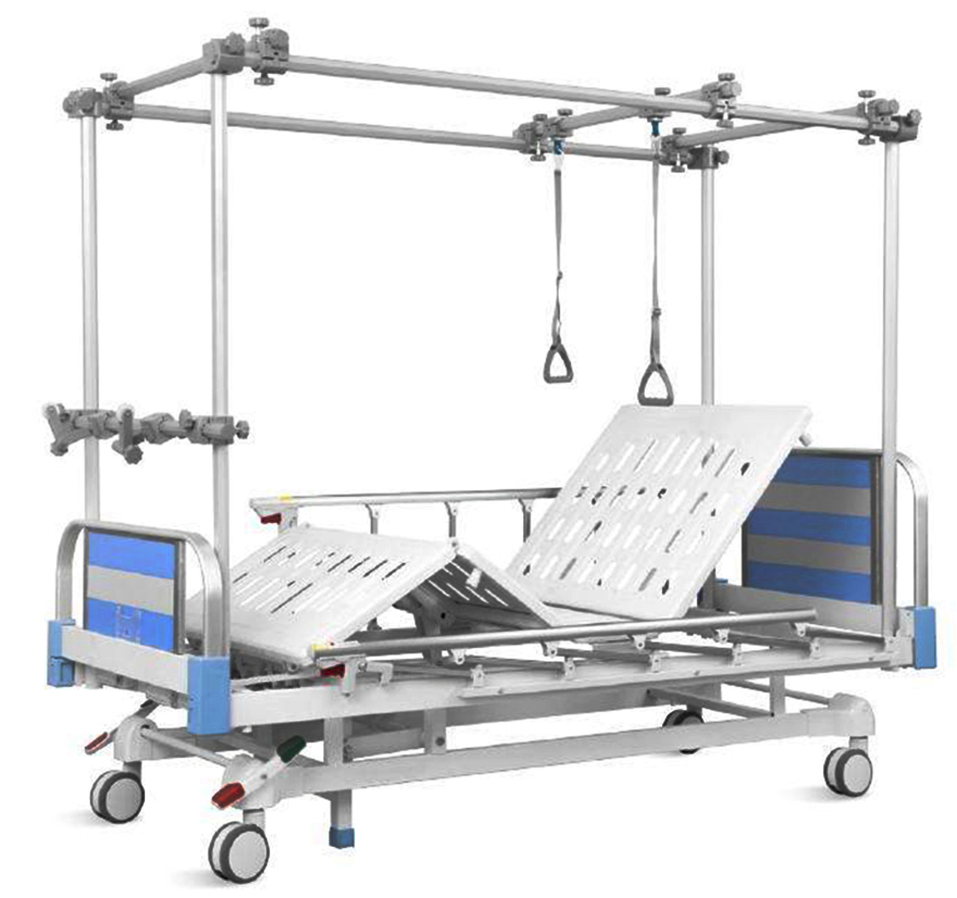

MS-Q700 Manual Orthopedic Traction Bed

Technical Parameters

◈ External Size (LxWxH): 2250x1060x(435-725)mm

◈ Mattress Platform: 1935x900mm

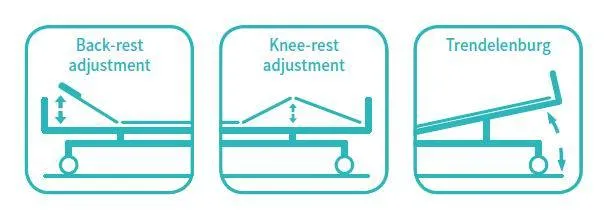

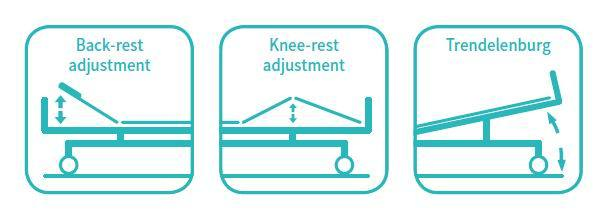

◈ Back-rest Adjustment: 0-75°(±10°)

◈ Knee-rest Adjustment: 0-35°(±10°)

◈ Reverse Trendelenburg: 0-12°

◈ Trendelenburg: 0-12°

◈ Electric CPR function included

◈ Safe Working Load: 250kg

Technical Configuration

✓ Linear Motor: 4pcs

✓ 5" Double Side Castors, Central Locking: 4pcs

✓ ABS Side Rail: 1set

✓ ABS Bed Ends with Safe Lock : 1set

✓ IV Pole Prevision: 4pcs

✓ Drainage Hook: 2pcs

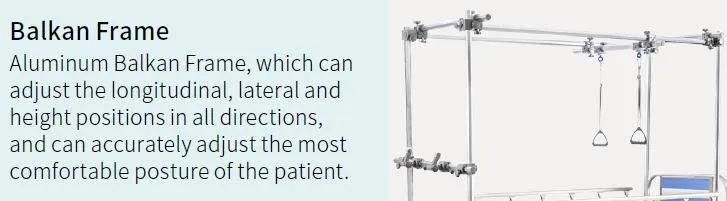

✓ Aluminium Balkan Frame: 1set

✓ Central Locking Pedal: 2pc

Frequently Asked Questions

What is the primary application of the MS-Q700 bed?

The MS-Q700 is a specialized orthopedic traction bed designed for use in hospital environments for patients requiring skeletal traction and orthopedic recovery.

What certifications does this hospital bed carry?

This model is fully certified with CE, FDA, and ISO13485 standards, ensuring it meets international safety and quality requirements for medical devices.

What is the maximum weight capacity?

The MS-Q700 has a safe working load of 250kg, making it suitable for a wide range of patient profiles.

Does the bed feature a central locking system?

Yes, it is equipped with 5" double-side castors and a central locking pedal system for enhanced stability and ease of movement.

What are the adjustment ranges for the back-rest and knee-rest?

The back-rest can be adjusted from 0 to 75° (±10°), and the knee-rest adjustment range is from 0 to 35° (±10°).

What is included in the technical configuration?

The configuration includes 4 linear motors, ABS side rails, ABS bed ends with safe locks, an aluminum Balkan frame, IV pole provisions, and drainage hooks.
