🔹 Basic Information
Numbers of Function
Two-function
Certification
CE, FDA, ISO13485
Transport Package
1 Piece in Carton
Specification
2080*980*500mm
Production Capacity
1000PCS/Year
📷 Product Showcase

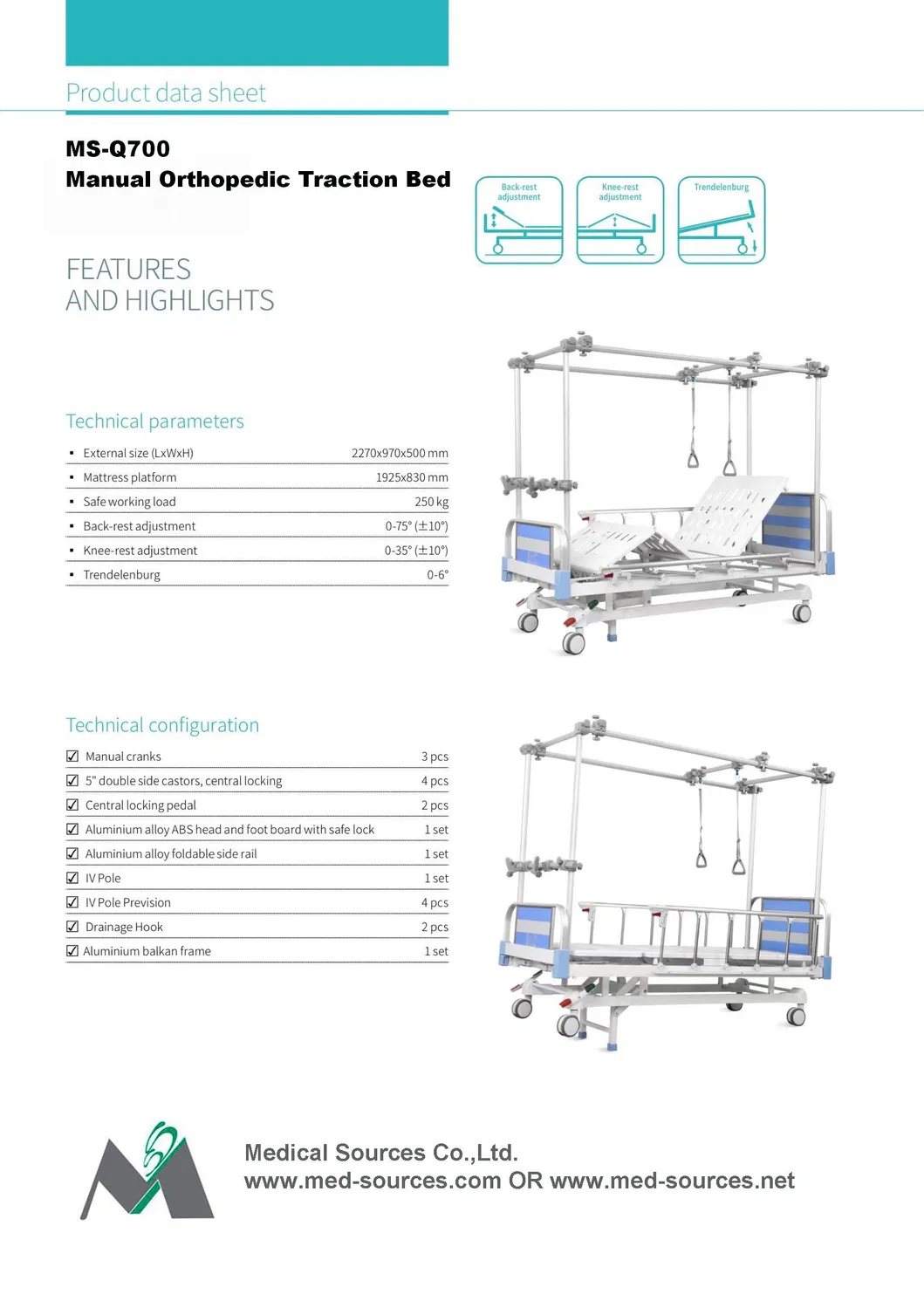

🛠️ MS-Q700 Technical Parameters
📏External Size (LxWxH): 2250x1060x(435-725)mm
🛌Mattress Platform: 1935x900mm

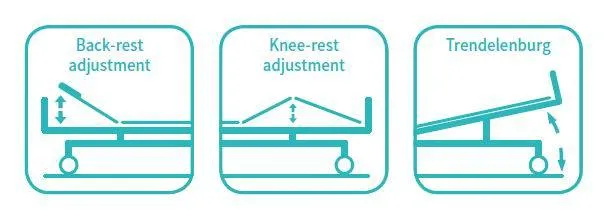

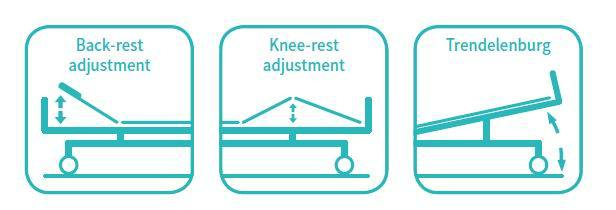

🔄Back-rest Adjustment: 0-75°(±10°)
🦵Knee-rest Adjustment: 0-35°(±10°)
↕️Reverse Trendelenburg / Trendelenburg: 0-12°
⚡Electric CPR function: Supported
⚖️Safe Working Load: 250kg
⚙️ Technical Configuration
🔘5" Double Side Castors, Central Locking: 4pcs
🔘ABS Bed Ends with Safe Lock: 1set

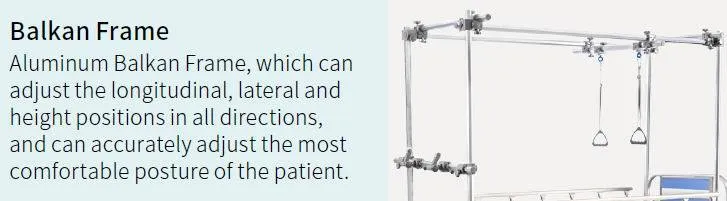

🔘Aluminium Balkan Frame: 1set
🔘Central Locking Pedal: 2pc
❓ Frequently Asked Questions
Q1: What are the primary certifications for the MS-Q700 hospital bed?
A: The MS-Q700 model is fully certified with CE, FDA, and ISO13485, ensuring it meets international medical safety standards.
Q2: What is the maximum load capacity of this orthopedic traction bed?
A: The bed is designed with a safe working load of up to 250kg, making it suitable for a wide range of patients.
Q3: How many linear motors are included in the configuration?
A: The technical configuration includes 4 high-quality linear motors for precise adjustments.
Q4: Does the bed feature a central locking system?
A: Yes, it is equipped with 5" double-side castors and a central locking pedal system for enhanced stability and mobility control.
Q5: What are the adjustment ranges for the back-rest and knee-rest?
A: The back-rest can be adjusted from 0 to 75°(±10°), and the knee-rest from 0 to 35°(±10°).
Q6: What material is used for the traction frame?
A: The bed is equipped with a professional Aluminium Balkan Frame designed specifically for orthopedic traction procedures.
