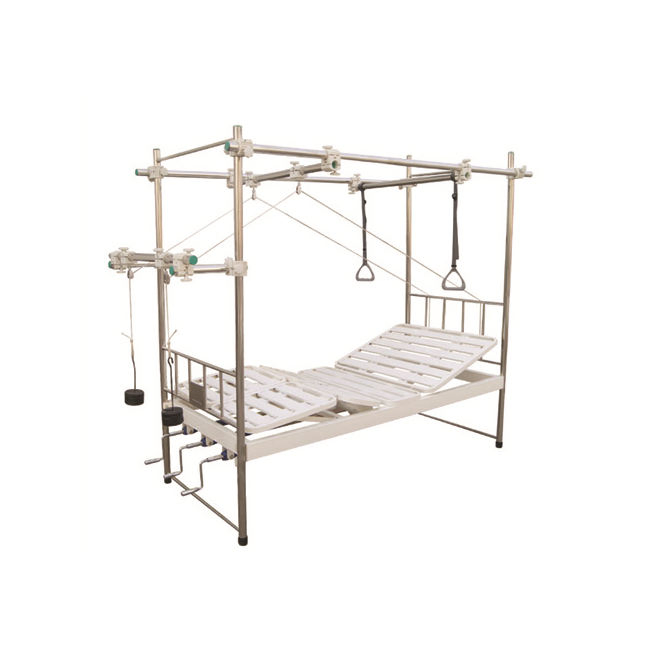

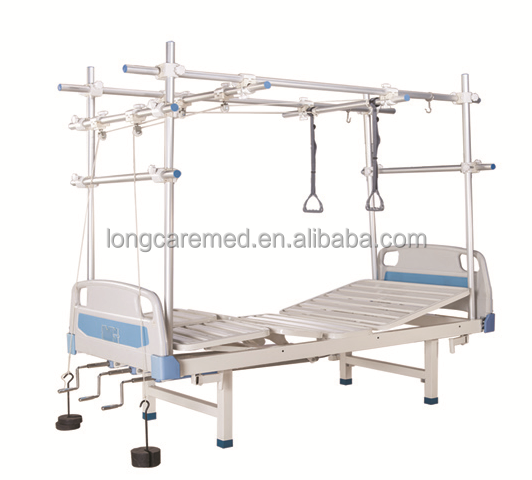

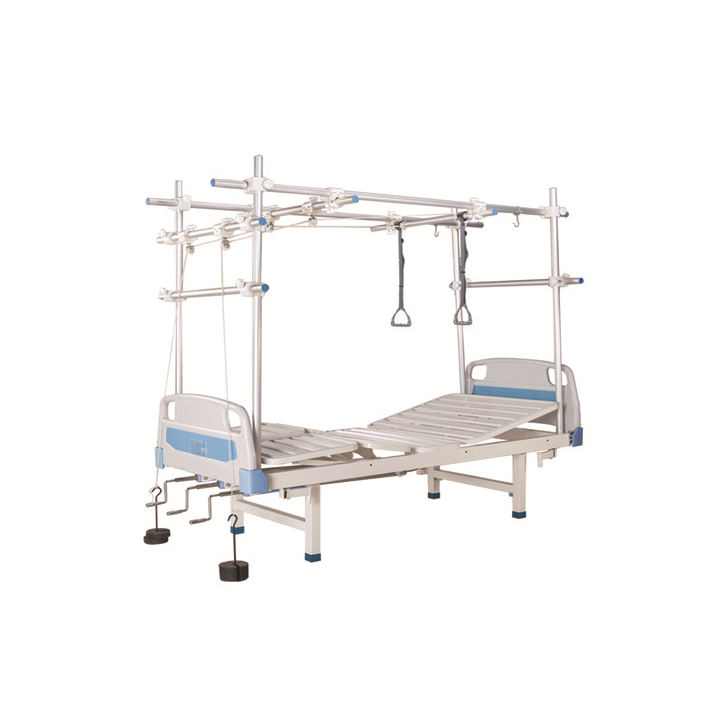

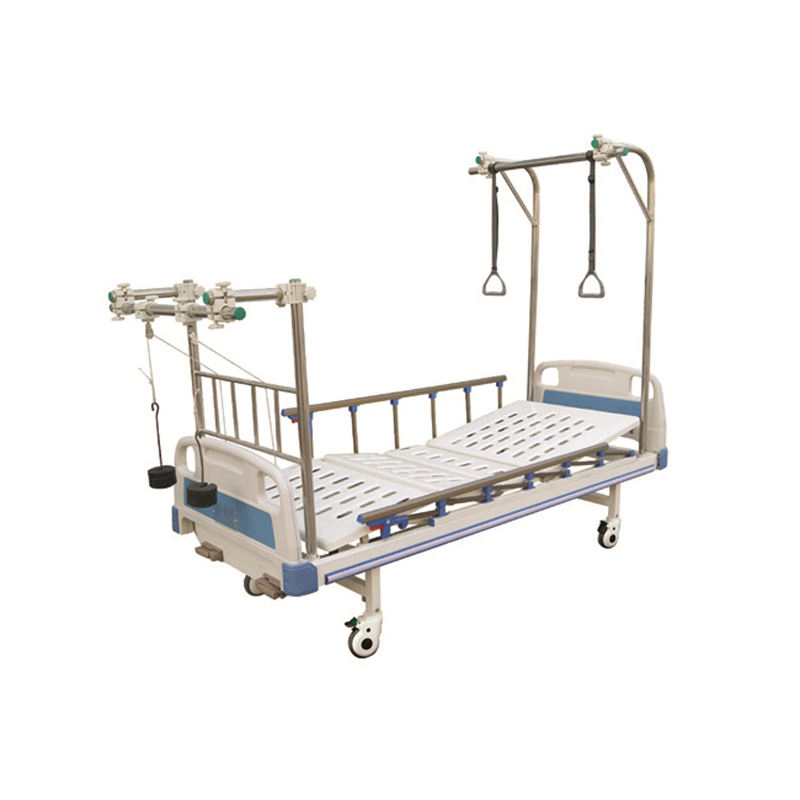

Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation

1 / 3

Manual Adjustable Orthopedic Traction Bed for Patient Rehabilitation

Warranty:	2 Years
After-Sale Service:	Free Spare Parts
Transport Package:	Wooden Box

Send Inquiry

Product Description

Basic Information

Model NO.

YH-A29

Origin

China

Capacity

25 Pieces Per Month

Material

ABS & Cold-rolled Steel

★

Product Overview

This Manual Adjustable Orthopedic Traction Bed is specifically designed for patient rehabilitation. It combines high-strength materials with ergonomic design to provide a stable and comfortable environment for recovery and medical procedures.

⚙

Technical Specifications

Dimensions: L2300 × W900 × H500mm

Load Capacity: Sturdy construction supports ≥240kg.

Key Features:

ABS Engineering Plastics: Bed head and end are blow-molded, offering impact resistance and easy removal.
M-Shaped Bed Top: 1.2mm thick cold-rolled steel with reinforcing ribs for better air permeability and slip resistance.
Advanced Welding: Frame uses 40*80*1.5mm square tubes for high stability.
Durable Coating: Electrostatic spraying with Akzo powder ensures firm paint attachment and oxidation resistance.
Aluminum Guardrails: Foldable design with ABS connectors and anti-pinch handles.
Silent Mobility: Equipped with 125mm luxury silent casters for noise-free movement.
Hidden Crank System: Stainless steel crank with dual-direction limit protection and zinc alloy components for longevity.
Traction Rack: Made of Φ32×2mm stainless steel tubes, ensuring a stable support system.

Adjustable Functions:

Backrest Adjustment: 0 - 80 ± 5º
Split Leg Part: 0 - 40 ± 5º

Parameter	Details
Material	High-Class ABS & Steel
Warranty	2 Years
After-sale Service	Free Spare Parts Provided
Standard Model	YH-A8 / YH-A29
Load Bearing	Above 150kg (Uniform) / Max 240kg

📷

Detailed Product Gallery

Frequently Asked Questions

What is the maximum weight the traction bed can support?

The bed is designed with a sturdy frame that supports a static load of 240kg or more, with a uniform load-bearing capacity of above 150kg.

How adjustable is the backrest and leg section?

The backrest can be adjusted from 0 to 80 ± 5 degrees, and the split leg section can be adjusted from 0 to 40 ± 5 degrees.

Are the guardrails easy to operate for caregivers?

Yes, the foldable aluminum alloy guardrails feature a hand-pinching prevention design and can be easily folded when not in use.

What kind of maintenance does the bed require?

The bed is built for durability with anti-wear copper rod processing in the lead screw and powder coating. We provide free spare parts under our 2-year warranty for maintenance needs.

Are the wheels suitable for quiet hospital environments?

Absolutely. The bed is equipped with 125mm luxury silent casters that are flexible and move without generating noise.

What material is used for the head and foot boards?

The head and foot boards are made from high-class ABS engineering plastics, which are impact-resistant, heat-resistant, and easy to sanitize.
