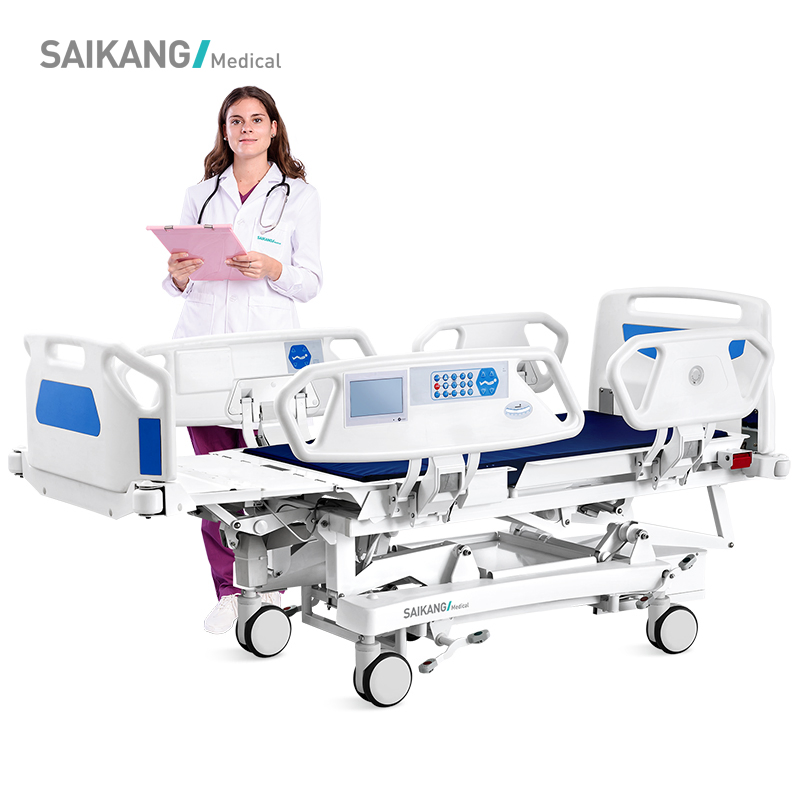

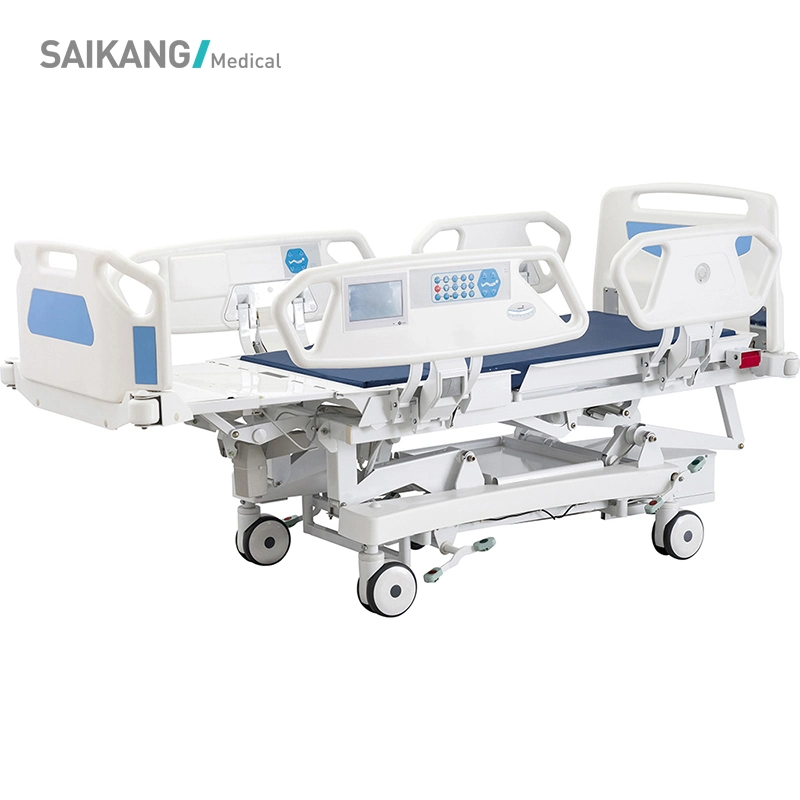

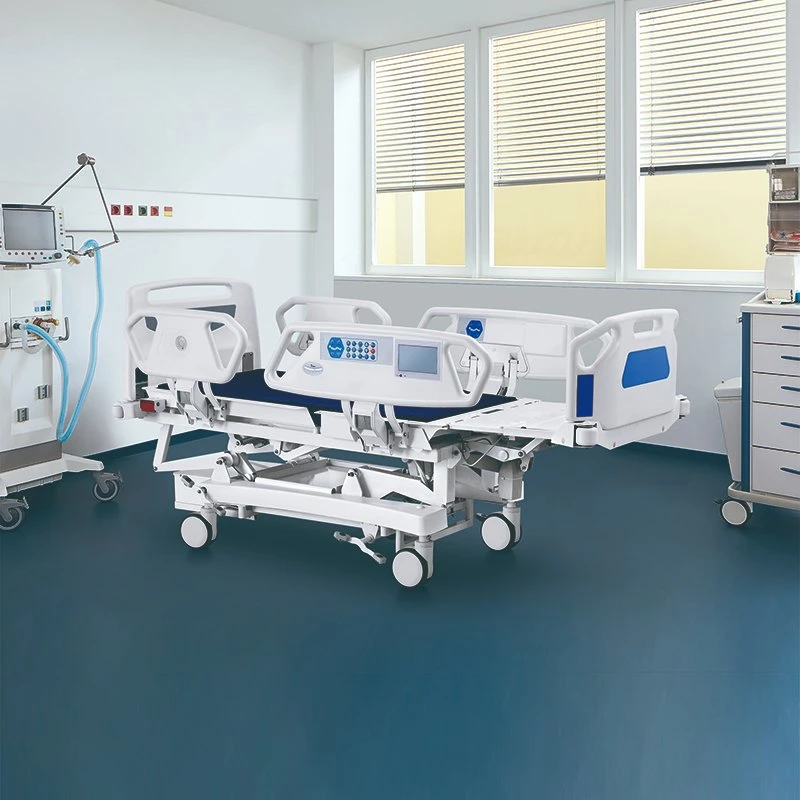

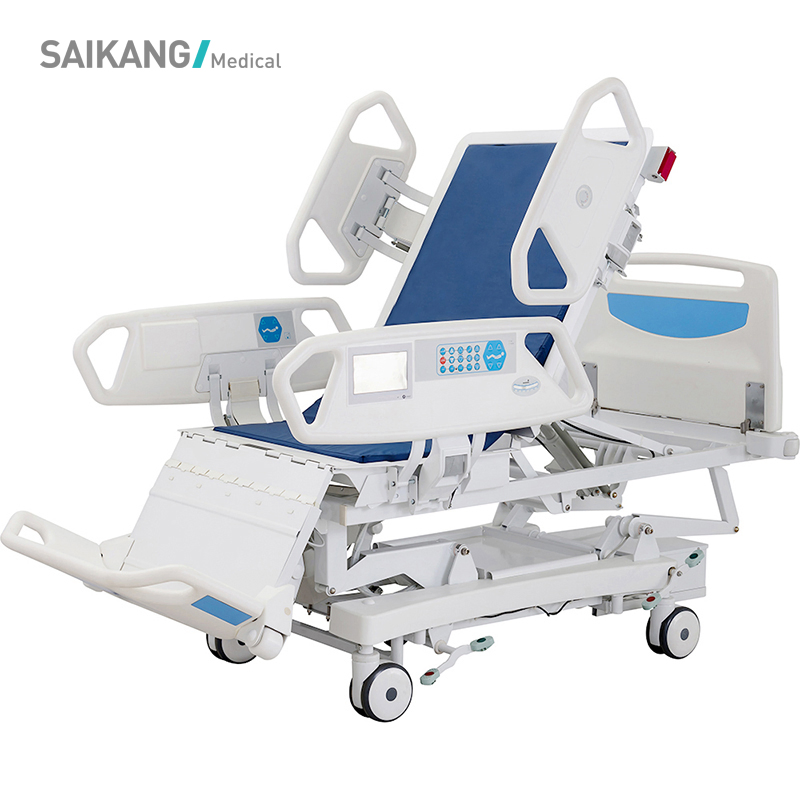

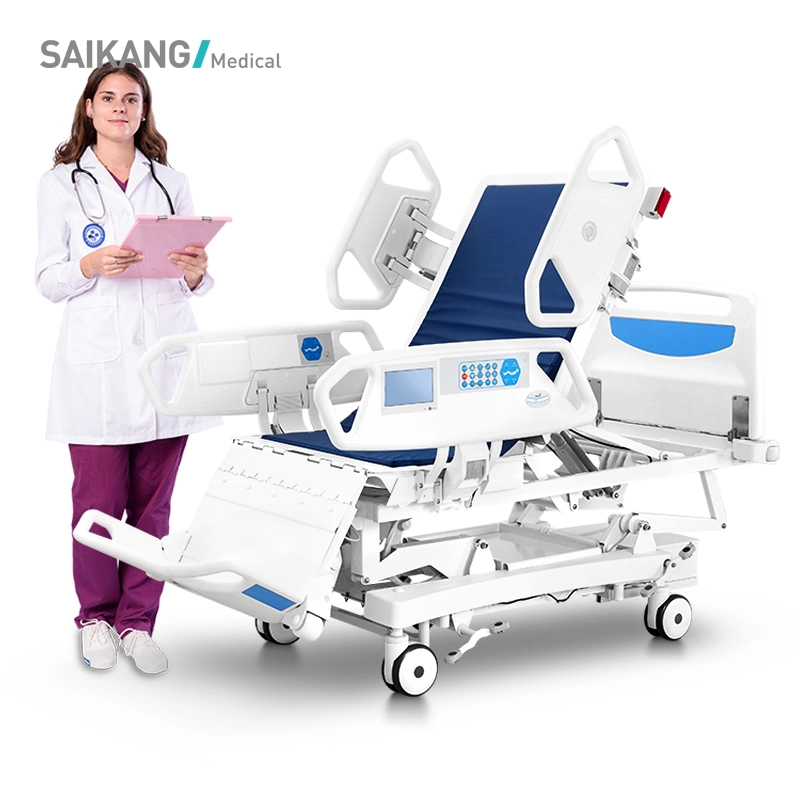

X9X Multifunction Adjustable Medical Equipment Folding Electric ICU Nursing Hospital Bed

1 / 5

X9X Multifunction Adjustable Medical Equipment Folding Electric ICU Nursing Hospital Bed

Customization:	Available
Material:	Metal
Type:	Electric Bed

Send Inquiry

Product Description

Basic Specifications

Model NO.

X9x

Folded

Unfolded

Using Ambient

Hospital & Home

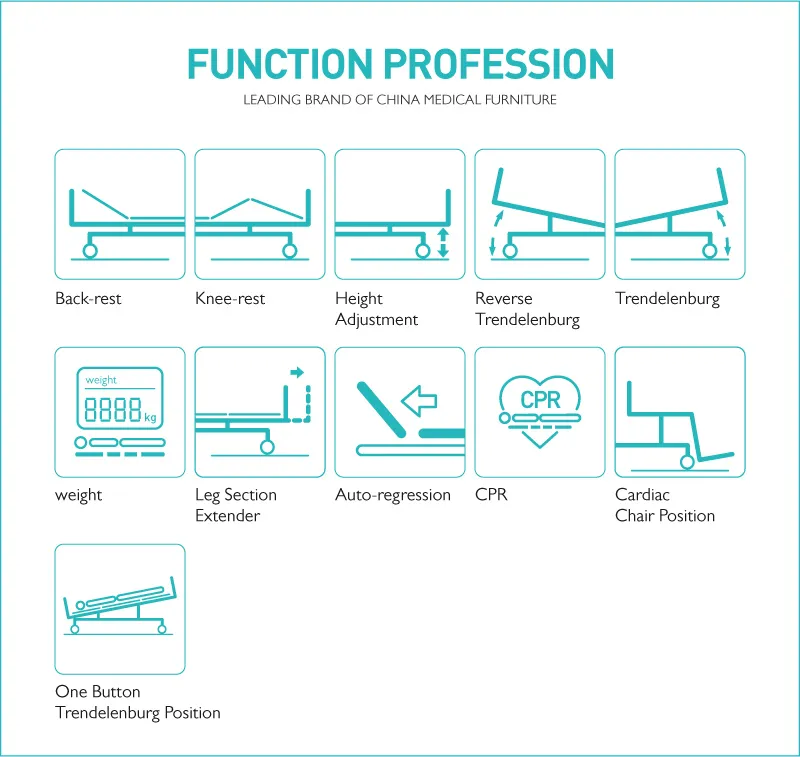

Functions

Eleven Functions

Certification

CE, FDA, ISO13485

Condition

New

Name

ABS Electric Adjustable Bed

Warranty

2 Years

Size

2290*1020*(500-1000)mm

Safe Working Load

250kg

Production Capacity

30000PCS/Year

HS Code

94029000

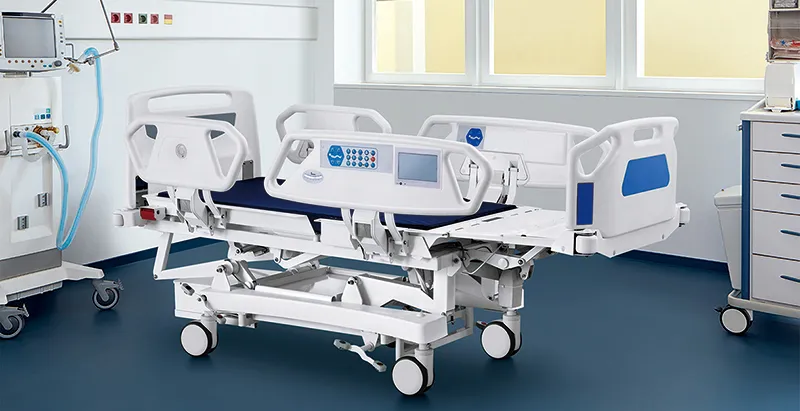

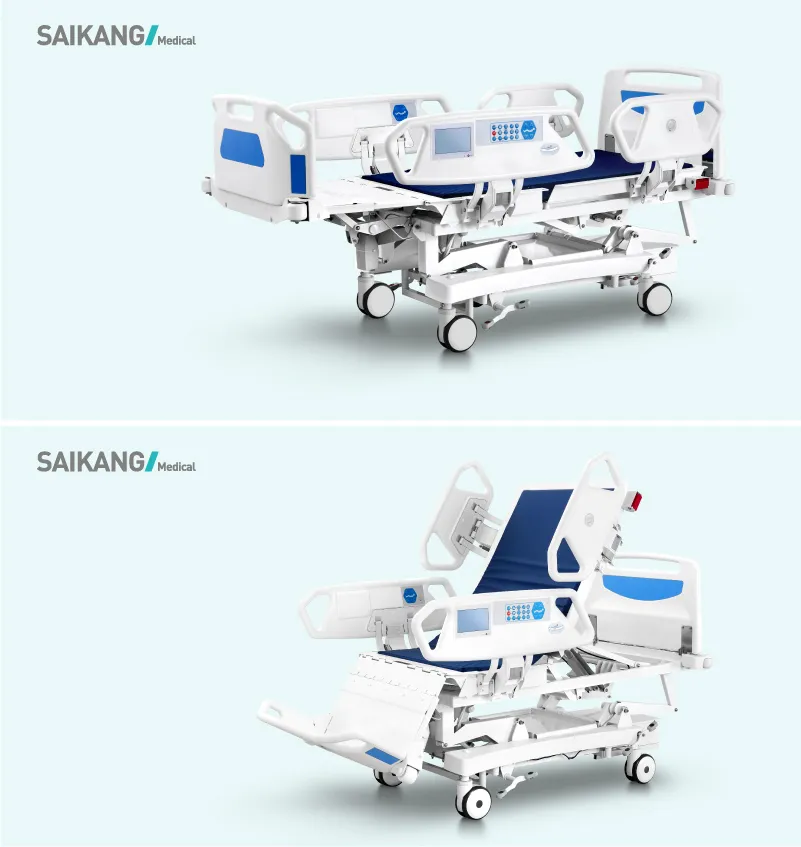

X9x Luxury Multifunction Electric ICU Bed

Important Quality Control

✓

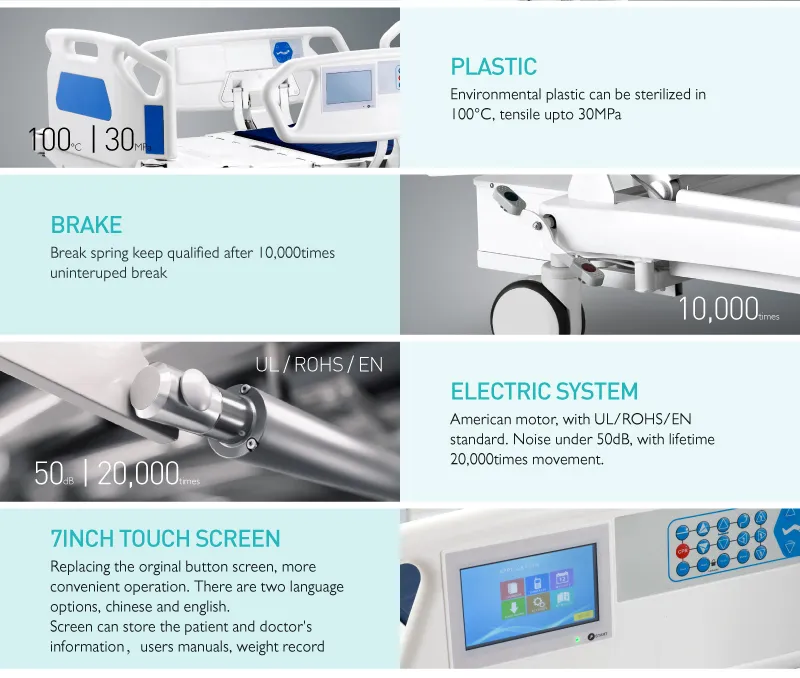

Use Linak motor from Denmark, ensure durable stability. With UL/ROHS/EN Standard.
✓
Baosteel from Fortune Global 500.
✓
7inch touch screen, replacing the original button screen, more convenient operation.
✓
11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm.

Key Functions

1
Height adjustment range from 500mm-1000mm, fits C-arm.
2
Integrated bed extension to adjust mattress platform length.
3
Cardiac Chair position to reduce pressure on the patient's heart.
4
Weighing system, accurate to 0.01Kg, with 10-time data storage.
5
One button Trendelenburg and Electric CPR quick release.
6
Alarm Away System to monitor patient movement.

Technical Parameters

Parameter	Category / Details
External LWH	22901020(500-1000)mm
Mattress Platform	(1830-2030)*820mm
Safe Working Load	250kg
Back-rest Adjustment	0-75°(±10°)
Knee-rest Adjustment	0-18°(±10°)
Trendelenburg/Reverse	0-12°
Linear Motor	6pcs
Castors	6" Double Side Secure® Castors, Central Locking
Side Rails	ABS with Integrated LCD Control Panel
Night Light	Integrated System

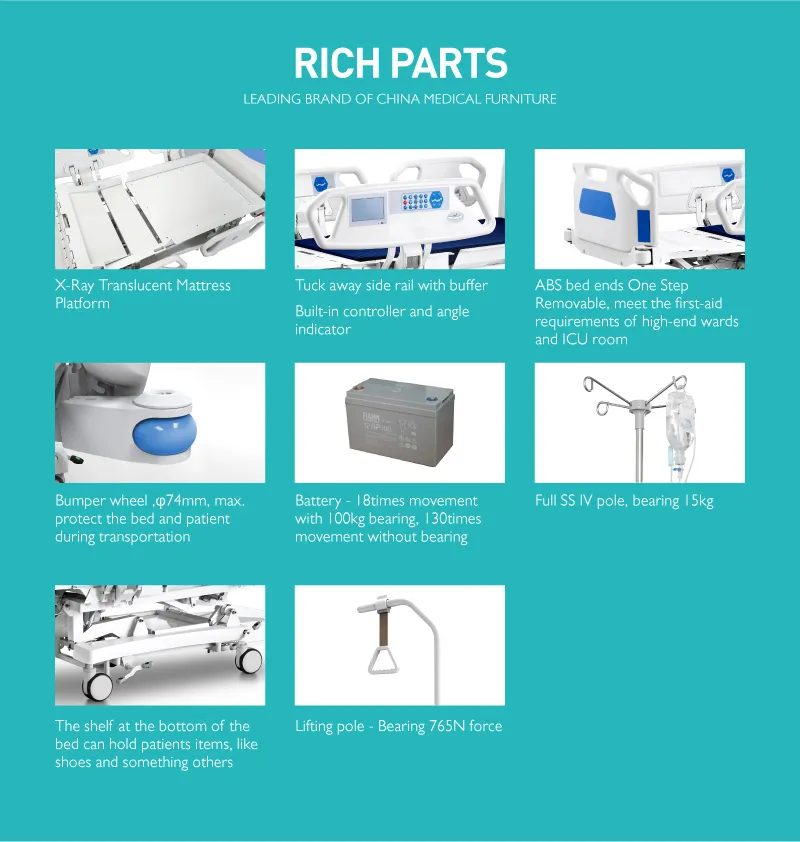

Accessories Details

* X-Ray Translucent Mattress Platform
* Tuck away side rail with buffer and built-in controller
* ABS bed ends, One Step Removable for emergency requirements
* Battery backup: 18 movements with 100kg bearing
* Full SS IV pole (15kg bearing) and Lifting pole (765N force)
* Storage shelf at the bottom for patient items

Frequently Asked Questions

What are the safety certifications for the X9x bed?

The bed meets ISO-9001/13485/14001/18001, European CE, North American FDA certifications, and complies with 93/42/EEC and IEC60601 safety standards.

What type of motors are used in this medical bed?

It primarily uses high-quality Linak motors from Denmark for durable stability. Other brand options like Timotion, Dewert, or Jiechang are also available.

Does the bed support X-ray procedures?

Yes, it features an X-ray translucent mattress platform specifically designed for ICU and high-end ward requirements.

What is the weight capacity and weighing accuracy?

The safe working load is 250kg. The integrated weighing system is accurate to 0.01Kg and includes a 10-time data storage system.

What are the warranty and service terms?

A standard 2-year warranty is provided, along with lifetime technical service. Free spare parts are offered for manufacturing issues within the first year.

Can the bed handle emergency transfers?

Yes, it includes a bed push handle for emergency transfer and a battery that supports up to 18 movements even with a 100kg bearing.
