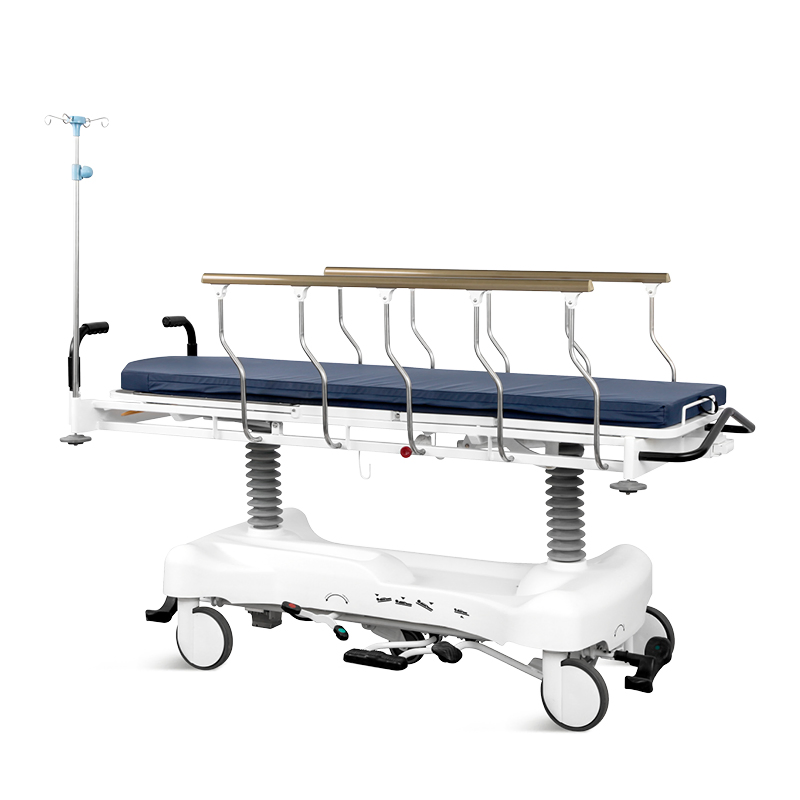

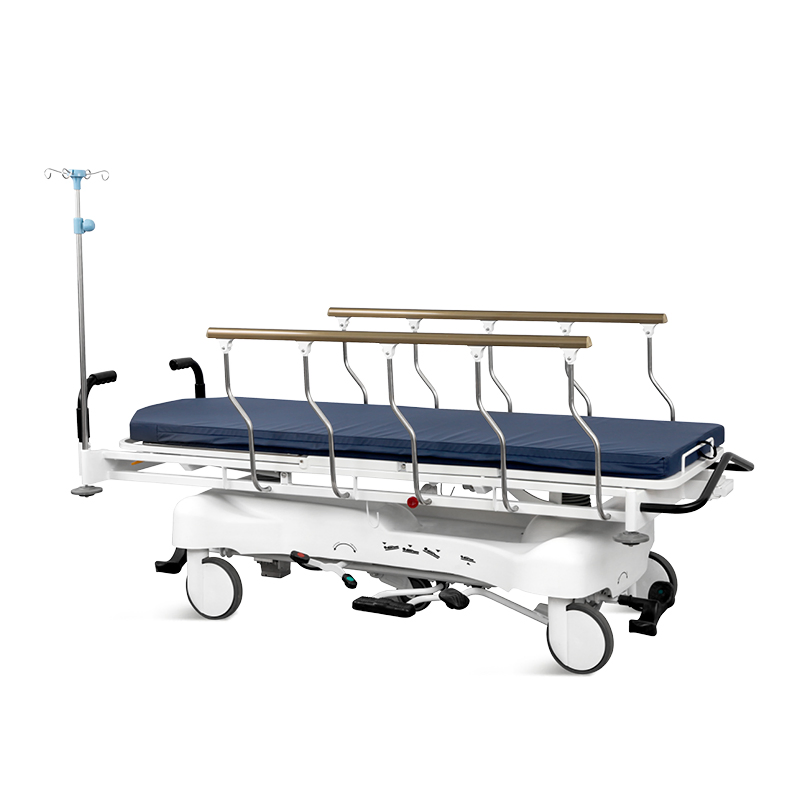

Skb041-3 Saikang Hospital Operation Connecting Emergency Hydraulic 5 Function Patient Transfer Trolley

1 / 5

Skb041-3 Saikang Hospital Operation Connecting Emergency Hydraulic 5 Function Patient Transfer Trolley

Customization:	Available
General Use:	Hospital Transportation Trolley
Sample:	Available

Send Inquiry

Product Description

Basic Specifications

Model NO.

SKB041-3

OEM

Available

Certifications

CE/FDA/ISO

Warranty

2 Years

Service Manual

Available

User's Manual

Available

Service

Lifetime

Spare Parts

1% Free

Transport Package

Carton/Wooden Box/Others

Specification

2100*750*(600-920)mm

HS Code

94029000

Production Capacity

30000PCS/Year

★

Product Description

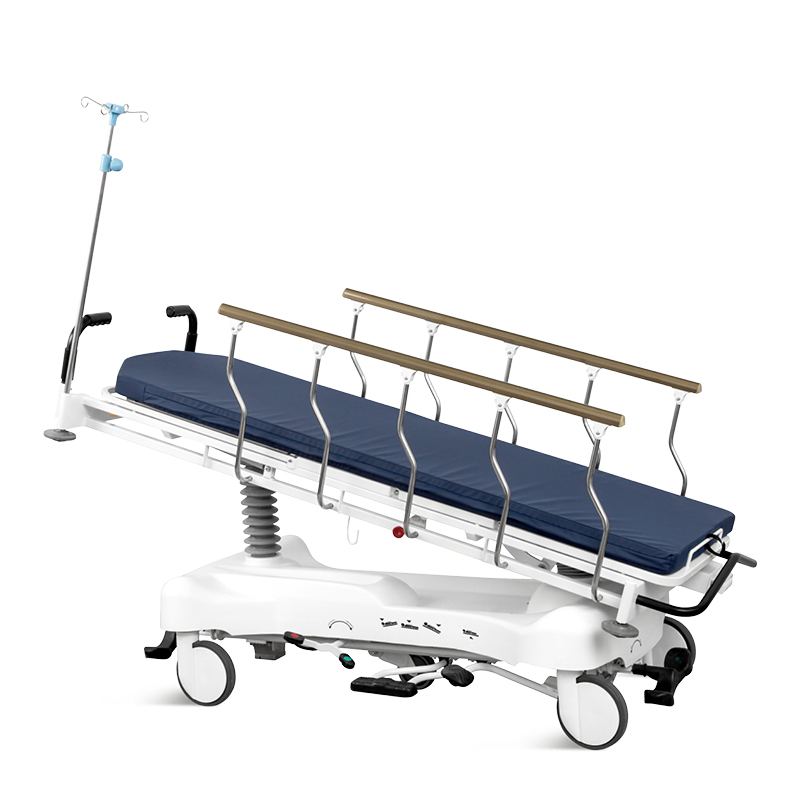

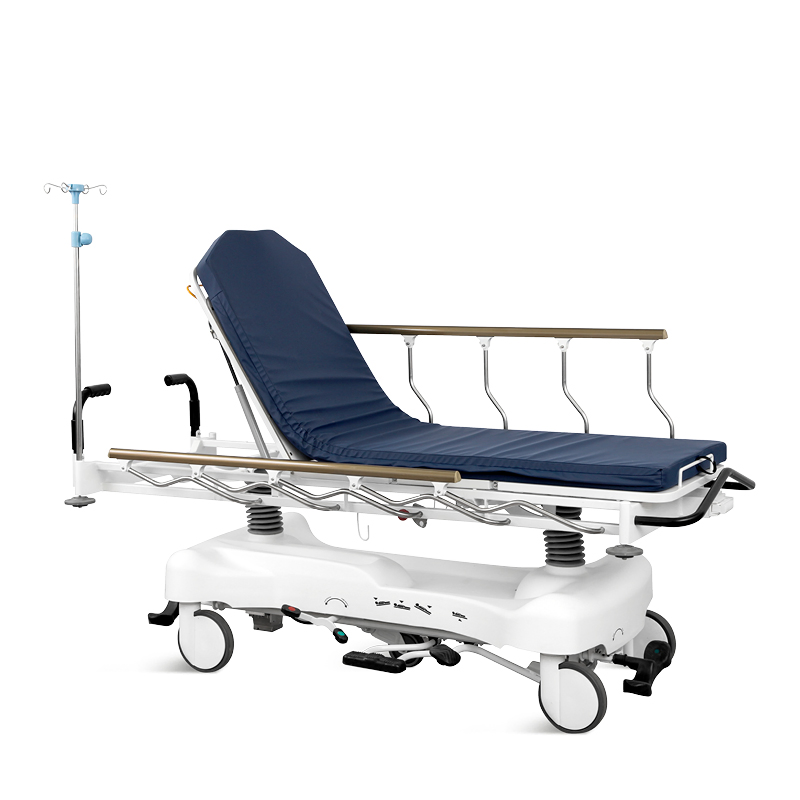

SKB041-3 Hospital Operation Connecting Emergency Hydraulic 5 Function Patient Transfer Trolley

Important Quality Control

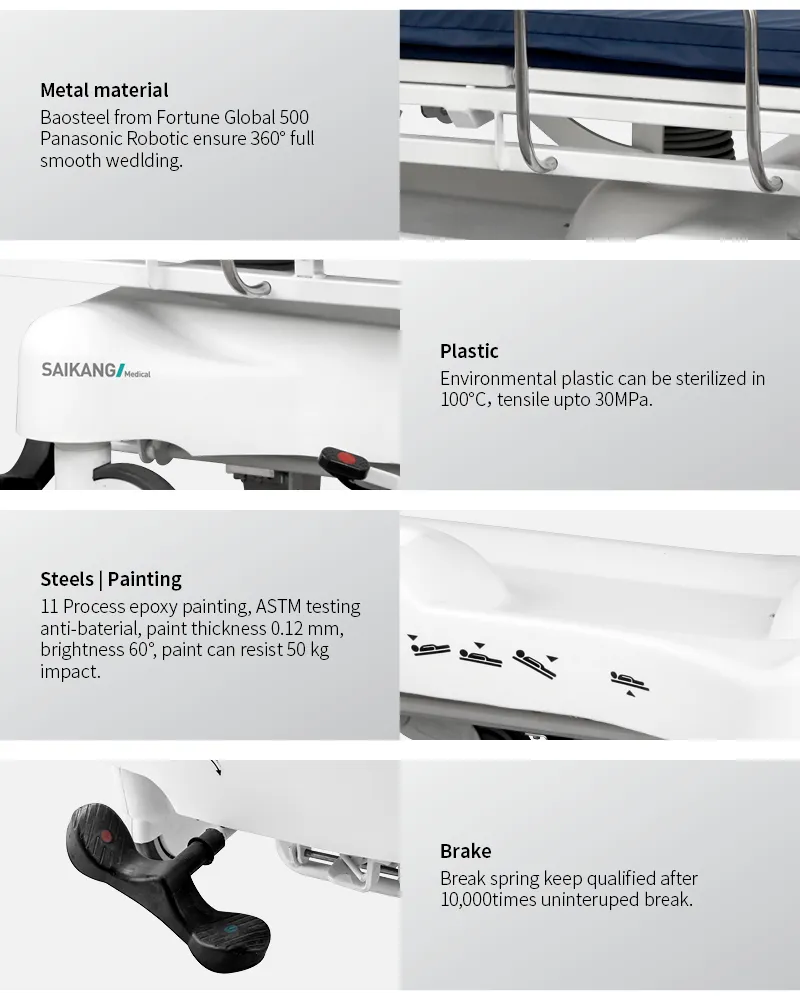

Modern design, versatile, ergonomic, providing a comfortable experience for the patient
Baosteel from Fortune Global 500 material source
Environmental plastic can be sterilized in 100°C, tensile up to 30MPa
Break spring remains qualified after 10,000 times uninterrupted break
11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm, brightness 60°, resists 50kg impact
Panasonic Robotic ensured welding quality
360° full smooth welding
American brand hydraulic pump, providing strong support for height adjustment and Trendelenburg functions

Accessories Details

Powder coated steel bed surface, smooth without welding, bearing capacity 220kg. Optional: X-ray bed surface

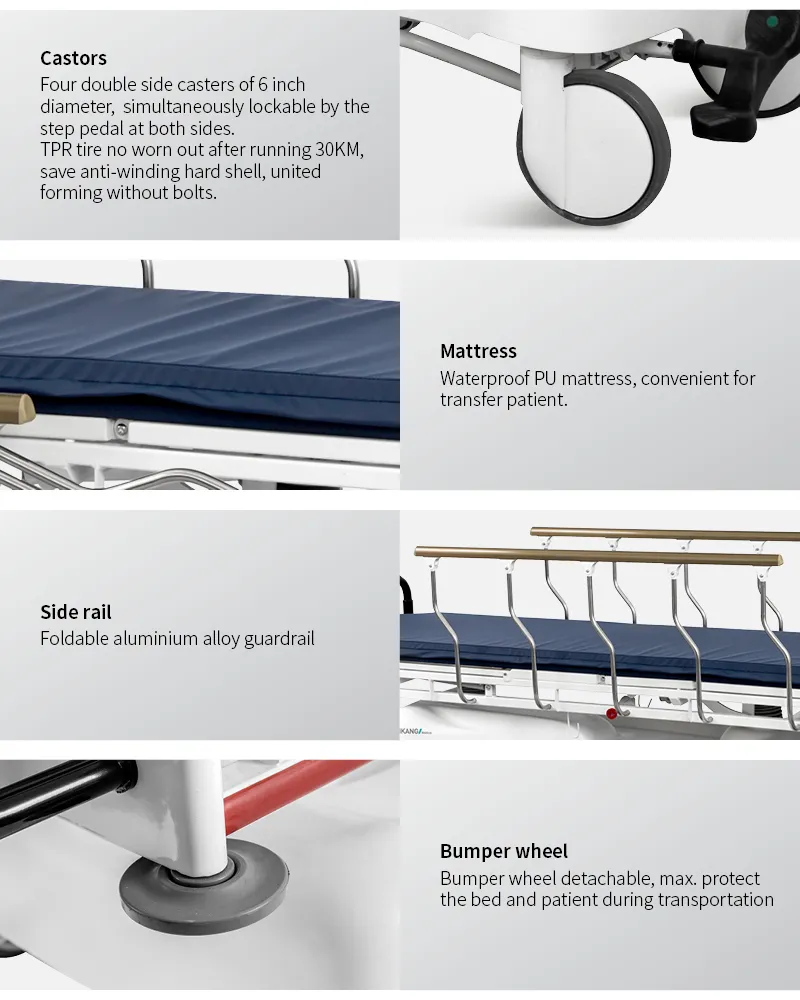

Foldable aluminium alloy guardrail
Bumper wheel detachable for maximum protection during transportation
TPR tire (no wear after 30KM), anti-winding hard shell, united forming without bolts
Dynamic test passed: Bearing 120kg run 30KM and pass obstacles 500 times
5th wheel to control the direction of moving

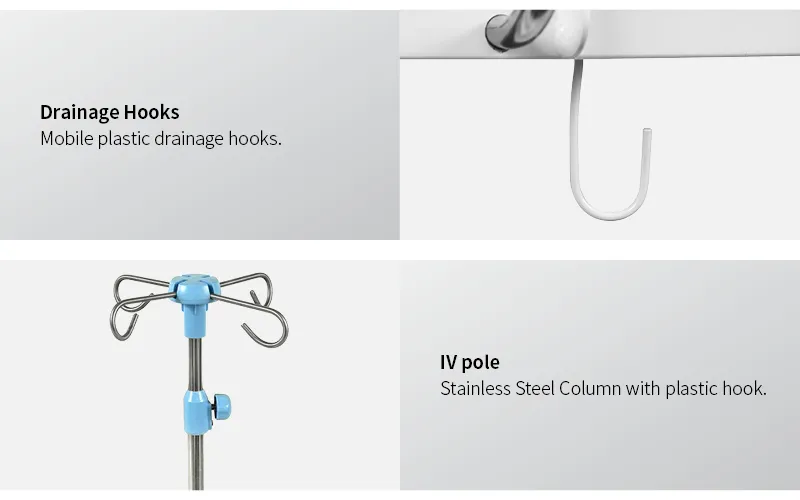

Full SS IV pole, bearing 15kg
Waterproof PU mattress, convenient for transfer
X-ray cassette & Oxygen cylinder holder
X-ray translucent platform

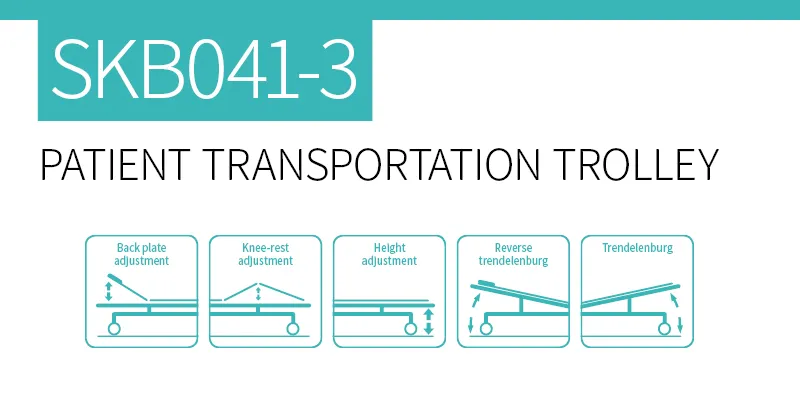

Technical Parameter

Size	2100750(600-920)mm

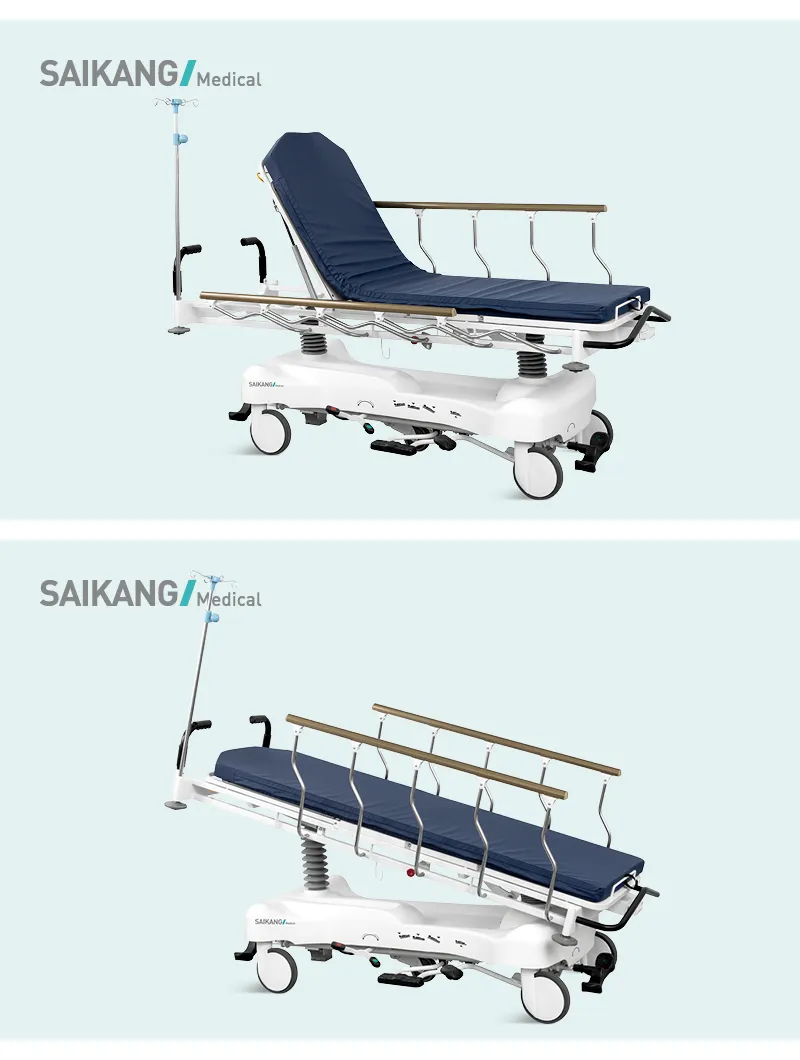

Back-rest lifting	0°-82 °(±5°)
Leg-rest lifting	0°-30 °(±5°)
Reversed trendelenburg	0-18°

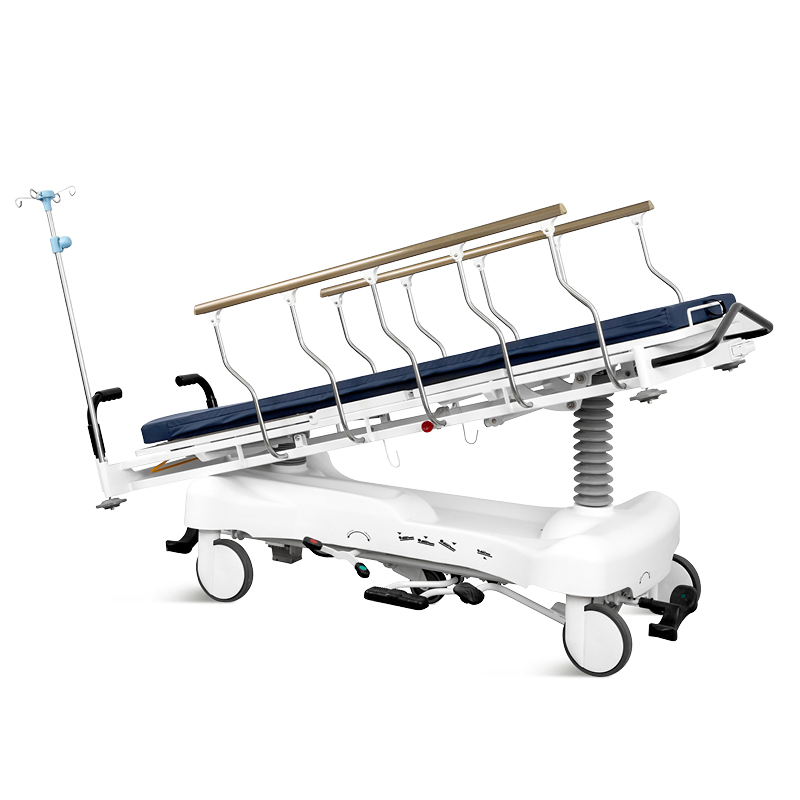

Trendelenburg	0-18°

Product Gallery

Frequently Asked Questions

What are the main functions of this hydraulic transfer trolley?

The SKB041-3 features 5 main functions including height adjustment (600-920mm), back-rest lifting (0°-82°), leg-rest lifting (0°-30°), Trendelenburg, and reversed Trendelenburg (0-18°).

What is the weight capacity of the trolley?

The trolley has a powder-coated steel bed surface with a bearing capacity of 220kg.

Does the trolley support X-ray imaging?

Yes, it includes an X-ray translucent platform and an X-ray cassette holder to facilitate imaging without moving the patient.

What certifications does this medical equipment hold?

The product is fully certified with CE, FDA, and ISO standards, ensuring it meets international medical quality and safety requirements.

How is the maneuverability of the trolley during emergency transfer?

It is equipped with high-quality TPR tires and a specialized 5th wheel system that provides superior control over the direction of movement during high-speed transport.

What kind of hydraulic system is used?

The trolley utilizes a high-quality American brand hydraulic pump, which provides reliable and smooth support for all height and tilt adjustments.
