Emergency Hydraulic Patient Transfering Stretcher/Trolley for ICU

1 / 1

Emergency Hydraulic Patient Transfering Stretcher/Trolley for ICU

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Emergency Hydraulic Patient Transfering Stretcher

📊 Basic Info.

Model NO.

BT202

Certification

ISO, FDA, CE

Material

Steel Power Coated + PP

Type

Ambulance Stretcher

MOQ

5PCS

OEM

Available

Warranty

1 Year

Application

Hospital/Ambulance

Specification

1900*730*850-1085mm

Origin

China

Capacity

2000/Month

📋 Product Description

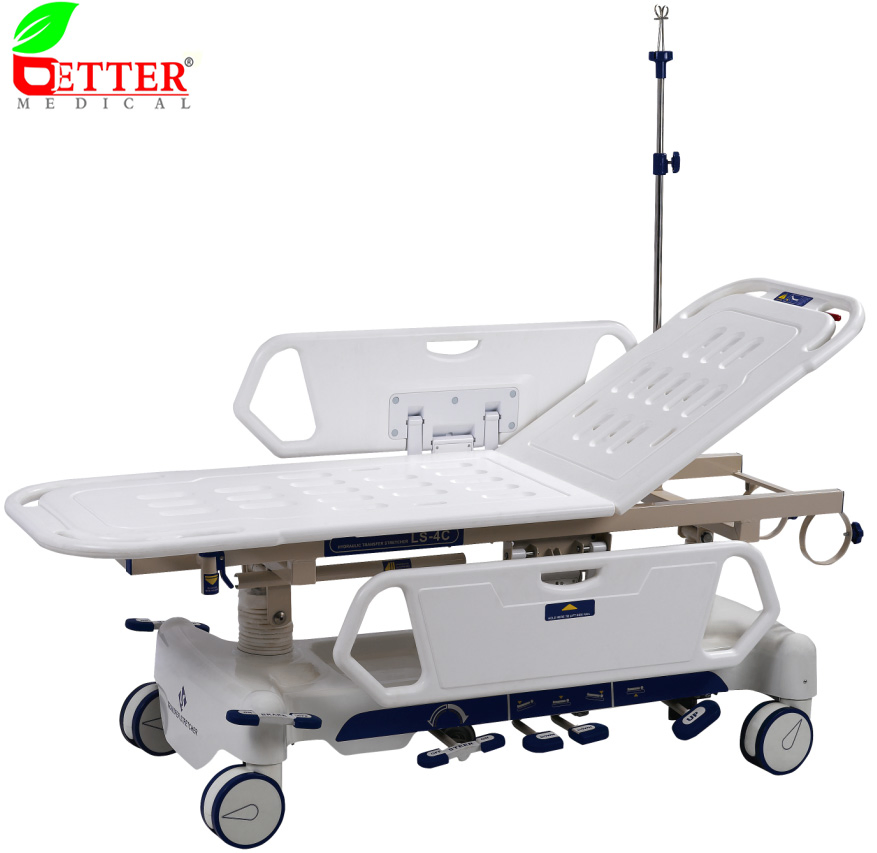

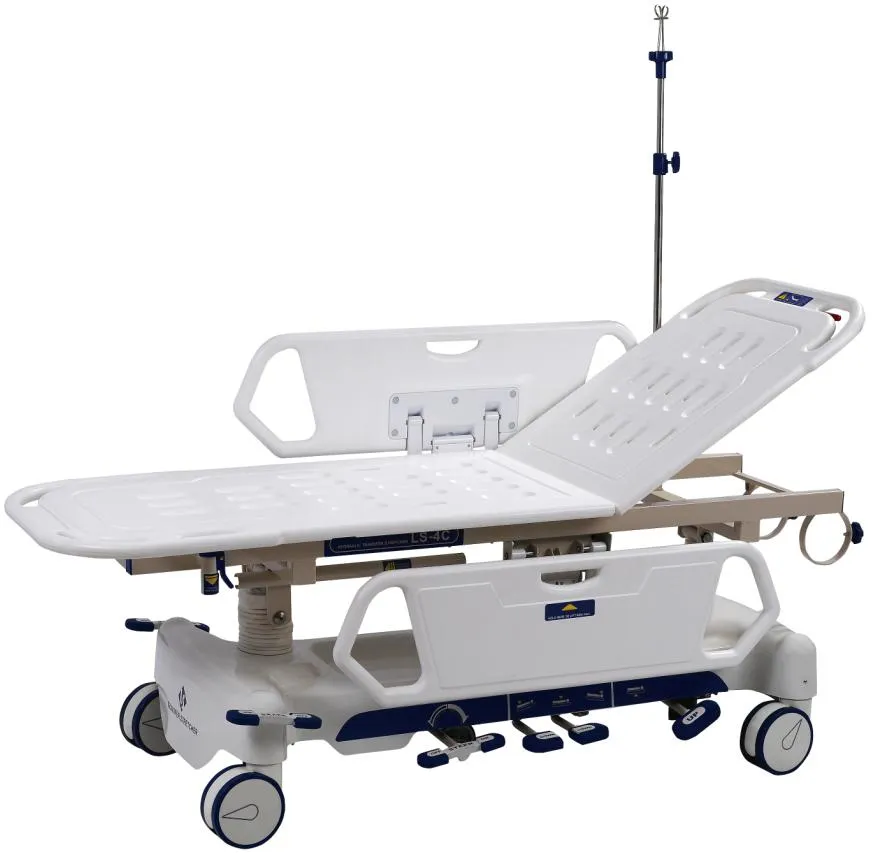

Emergency Hydraulic Patient Transferring Stretcher/Trolley for ICU

Model: BT202

Dimensions & Adjustments:
• Size: 1900*730*850-1085mm
• Bed board size: 1900x600mm
• Hi-lo adjustable: 580-815mm
• Backrest adjustable: 0~60°
• Trendelenburg & reverse: 0~13°
• Castors: 150mm (6") | Fifth wheels: 125mm (5")
• N.W: 85kgs | Max loading: 175kgs

Material Construction:
• Frame: Steel powder coated
• Side rails: PP
• Bed board: ABS
• Castors: Rubber
• I.V pole: Stainless steel

Standard Accessories:
• 4pcs 5" luxurious castors (central-controlled brake)
• 2pcs PP side rails
• 1 set of crank system & hydraulic backrest pole
• Oxygen tank holder & 2pcs I.V drip stand holders
• Steering device, Mattress, and 5pcs pedal

🛠️ Cleaning and Maintenance

General Cleaning: Use a soft cloth dipped in diluted neutral detergent. Wipe with clean water and dry thoroughly. Do not use volatile agents like gasoline or high-temperature sterilization.

Preventive Maintenance: Professional inspection is required annually. Check for loose fasteners, safety risks, and add lubricant to moving parts to ensure smooth operation.

📦 Storage Requirements

Temperature Range: -10 ºC to 40 ºC.
Relative Humidity: Less than 80% RH.
Environment: Well-ventilated room without corrosive gas.
Position: Adjust stretcher to the lowest height; do not place heavy objects on it.
Transport: Keep horizontal; do not flip during transport.

🛡️ Quality Assurance

A 1-year warranty is provided under standard operation following the user manual. Please note that free warranty service is not available for:

Damage caused by unauthorized dismantling or improper operation.
Failures caused by misassembling, delivery, or moving.
Natural disasters (Earthquake, fire, lightning, flood, etc.).

Frequently Asked Questions

What is the maximum load capacity of the BT202 stretcher?

The stretcher is designed to handle a maximum load of 175kgs safely.

Is the height and backrest of the trolley adjustable?

Yes, the height is adjustable between 580-815mm, and the backrest can be adjusted from 0 to 60 degrees using a hydraulic pressure pole.

What certifications does this medical stretcher hold?

The product is certified by ISO, FDA, and CE standards, ensuring international quality compliance.

How should the stretcher be stored when not in use?

It should be stored at its lowest height in a well-ventilated room with temperatures between -10 ºC and 40 ºC and humidity below 80%.

What is included in the standard accessory package?

Standard accessories include 4 central-controlled castors, PP side rails, an oxygen tank holder, I.V drip stand, steering device, mattress, and 5 pedals.

What does the 1-year warranty cover?

The warranty covers quality issues occurring under normal operation as per the manual. It excludes damage from unauthorized repairs or natural disasters.
