Hydraulic Emergency Medicine Trolley Patient Transfer Hospital Trolley

1 / 5

Hydraulic Emergency Medicine Trolley Patient Transfer Hospital Trolley

Customization:	Available
Material:	Metal
Type:	Manual Bed

Send Inquiry

Product Description

Basic Information

Model NO.B2

FoldedUnfolded

Using AmbientHospital

FunctionFive-function

CertificationCE, ISO13485

ConditionNew

Length2150 mm

Height580-900 mm

Width870mm

Capacity30000PCS/Year

OriginChina

HS Code940290000

★

Product Description

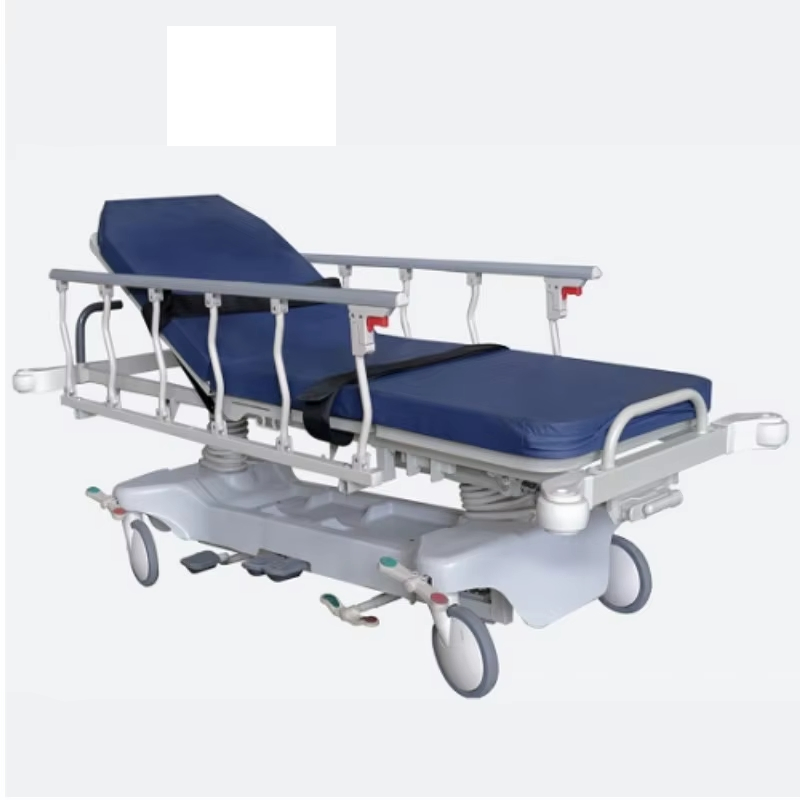

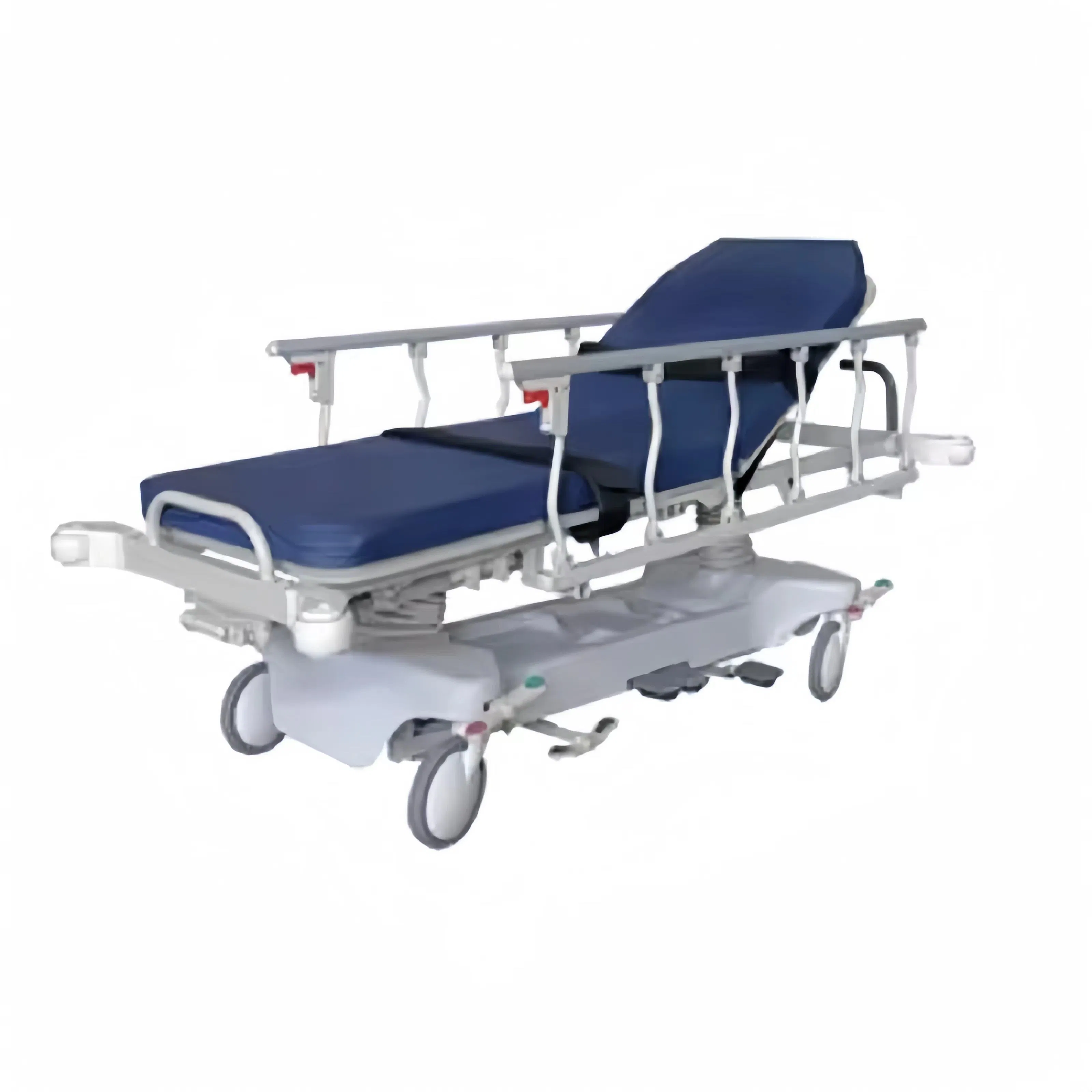

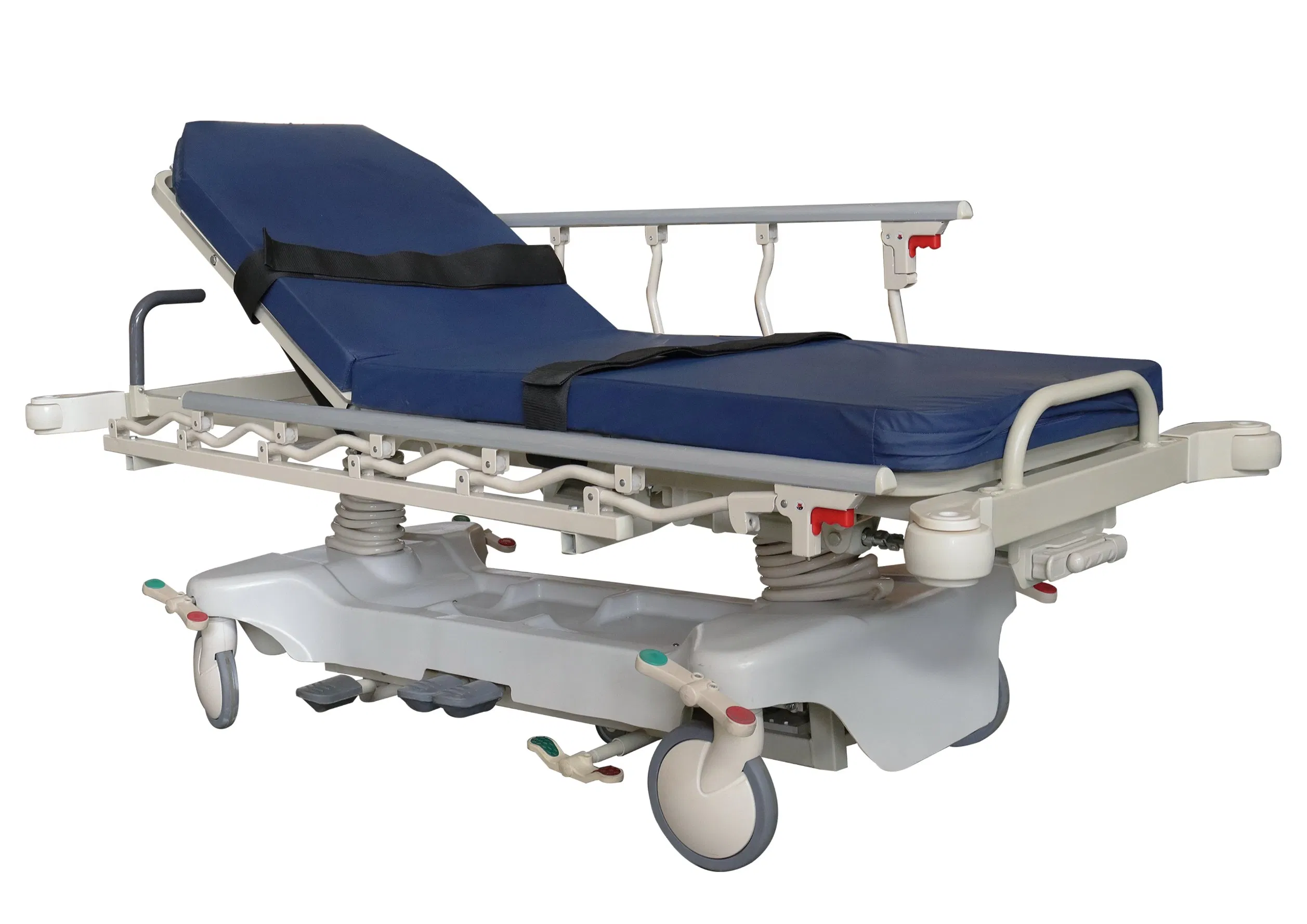

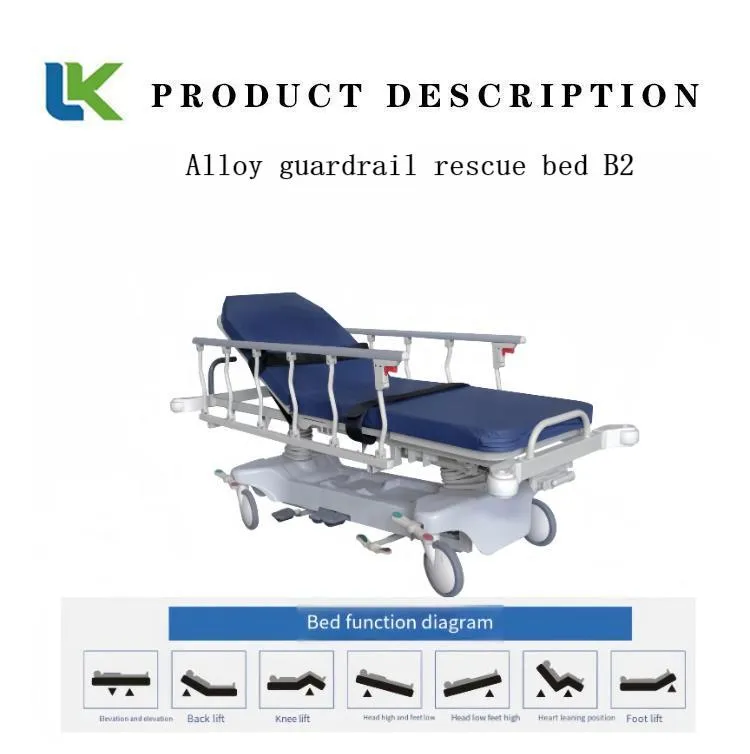

Hydraulic Emergency Patient Transfer Trolley

Full length	2150mm
Full width	870mm
Bed board length	1880mm
Bed board width	620mm

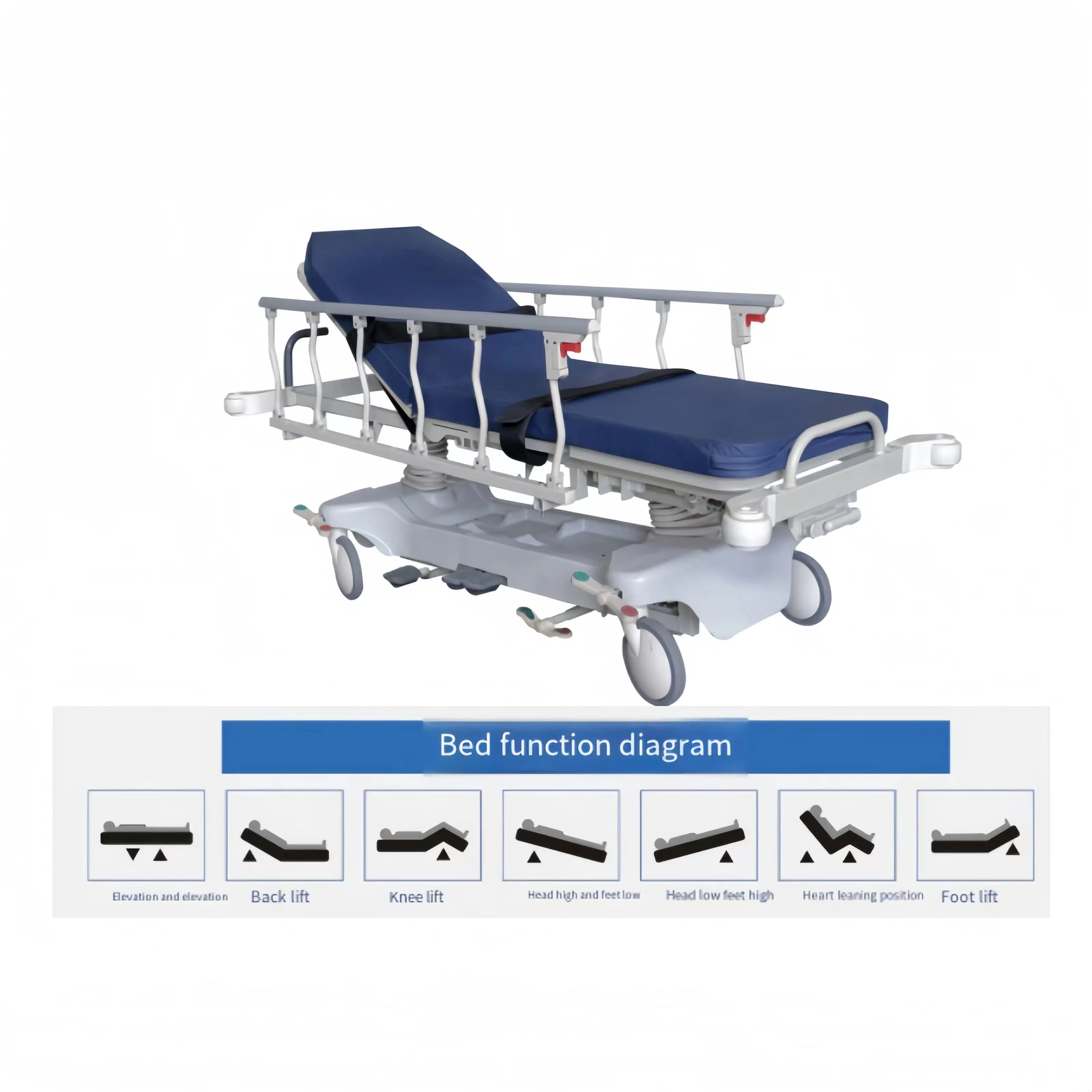

Height lift	580-900mm
Back lift	0-90°
Knee lift	0-40°

✔

Safe working load: 220KG.

✔

Back lifting system: Controlled by 2 high-quality silent gas springs, with stronger load-bearing capacity and safer.

✔

Height lifting system: Using imported hydraulic cylinder, the quality is more stable.

✔

Bed board: Made of anti-multiple material (thickness ≥5mm), X-ray transparent, high strength, non-deforming for emergency CPR.

✔

Frame: High-quality cold-rolled bright steel for flatness, rigidity, and toughness.

✔

Spray coating: Phosphating treatment for stronger adhesion and rust prevention.

✔

Guardrail: High-strength 6-speed metal folding guardrail for patient safety and easy transport.

✔

Angle meter: Located on each side to display front and rear inclination for clinical requirements.

✔

Casters: 200mm diameter centrally controlled silent casters with a four-corner control system.

✔

Central fifth wheel system: Retractable for free travel or "straight forward" mode to control direction during transport.

✔

Tray: Integrated ABS tray under the bed for oxygen bottles (Load: 10Kg).

✔

Collection rack: Equipped with an infusion pole.

✔

Mattress: ≥70mm thickness, waterproof, easy to clean, anti-slip, with washable outer fabric.

✔

Recording table: Foldable table at the end of the bed for monitoring or recording.

✔

Anti-collision: Buffer wheels at four corners to protect the bed in narrow passages.

Frequently Asked Questions

Q: Are you a manufacturer?

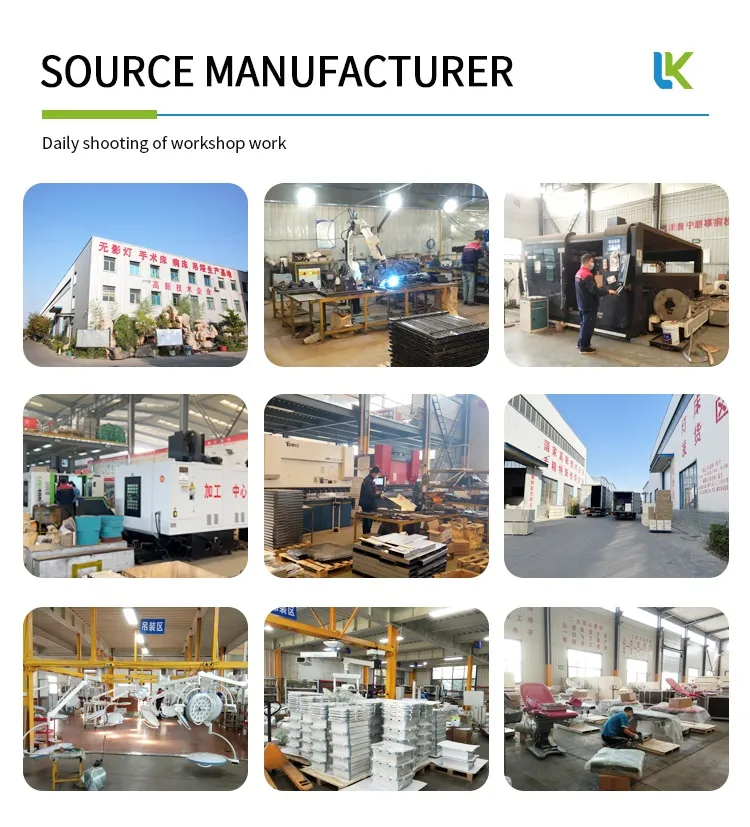

A: Yes, we have a research and development center of more than 6,000 square meters and a standardized production workshop of more than 30,000 square meters. We have our own R&D and sales teams to provide one-stop service.

Q: Do you have CE and ISO13485 certifications?

A: Yes, our products are fully approved by CE and ISO13485 standards.

Q: Is OEM & ODM available in your factory?

A: Yes, we offer OEM and ODM services. Simply provide the necessary documentation, and we will produce according to your requirements.

Q: What are your packing details?

A: We use standard export wooden cases or carton packages. All productions are carefully inspected by QC before delivery.

Q: What is your delivery time?

A: For stock items, delivery is 5-10 days after deposit. For non-stock items, production takes 20-30 days depending on the order quantity.

Q: What is your minimum order quantity?

A: The minimum order is 1 set.
