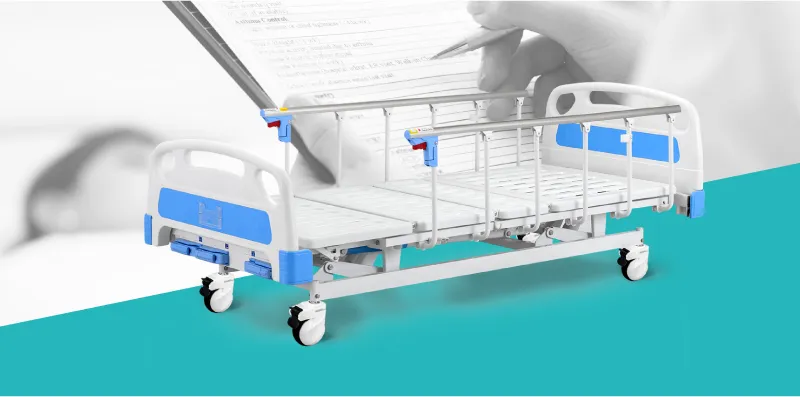

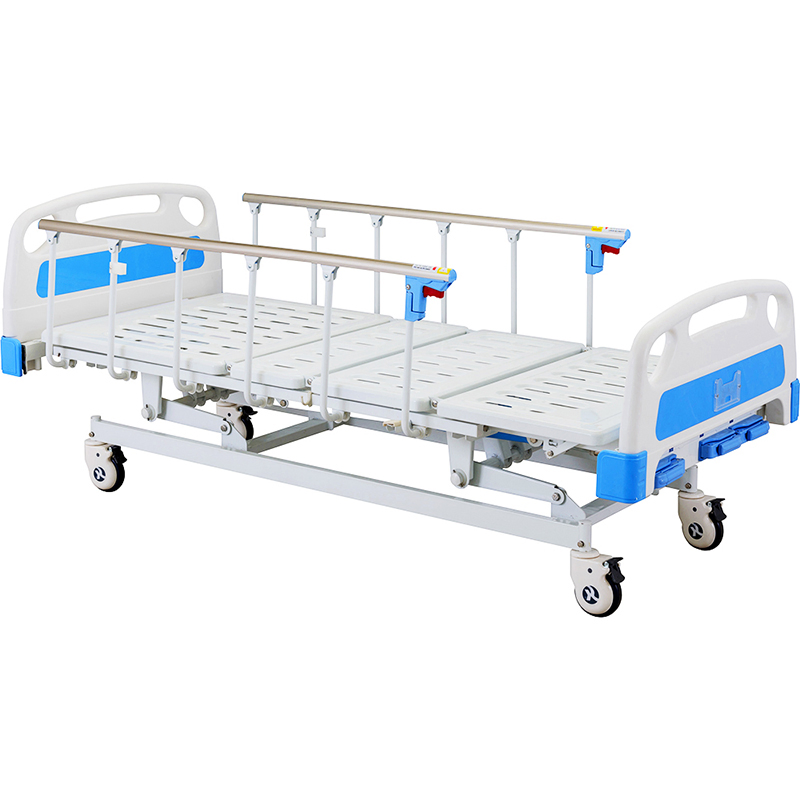

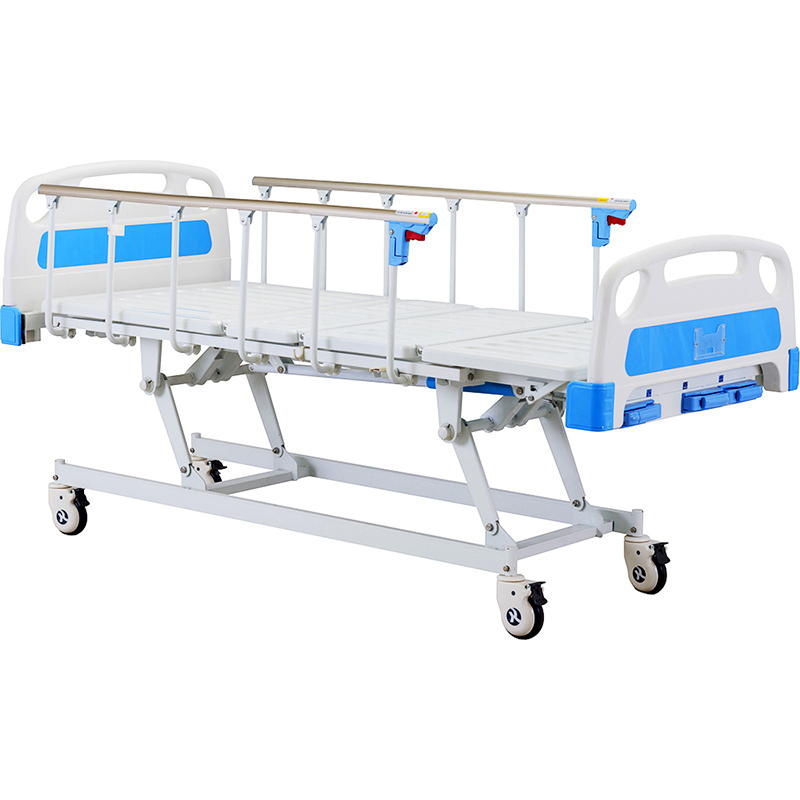

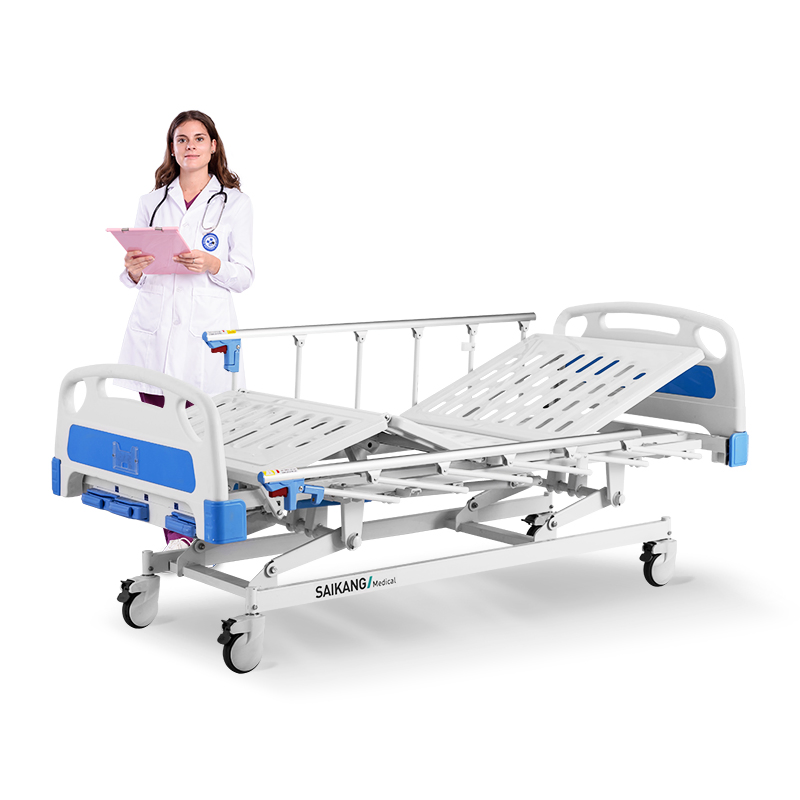

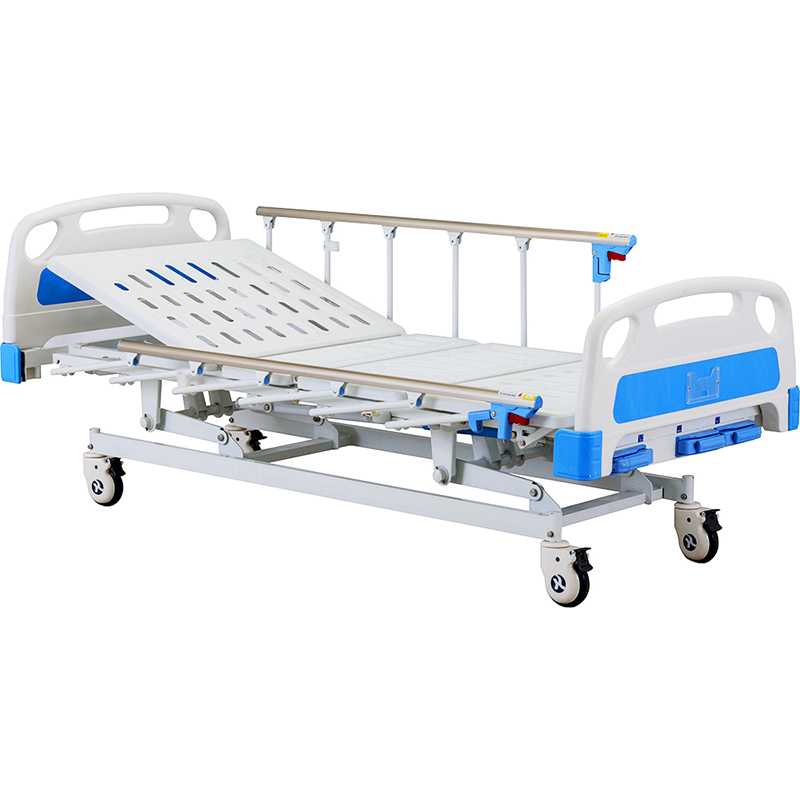

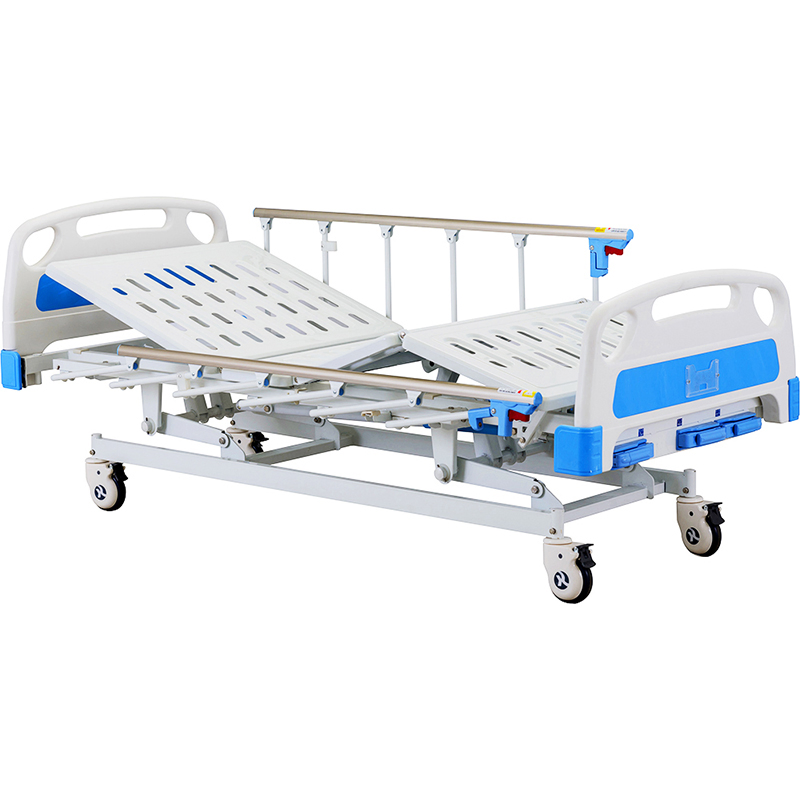

A3w Manual Three Crank Medical Hospital Pediatric Bed

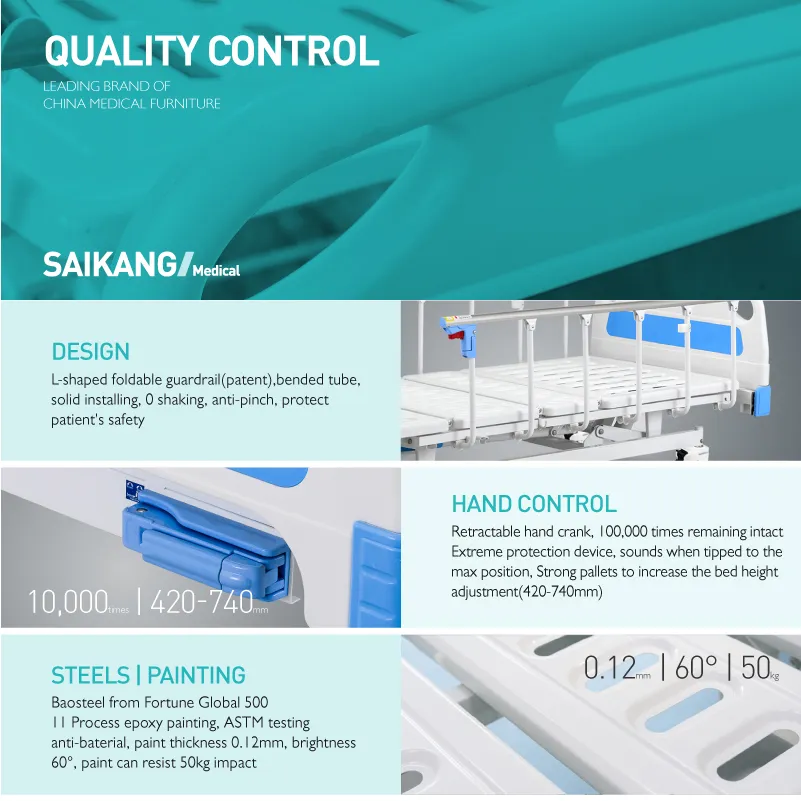

⭐ Important Quality Control
✔Baosteel from Fortune Global 500

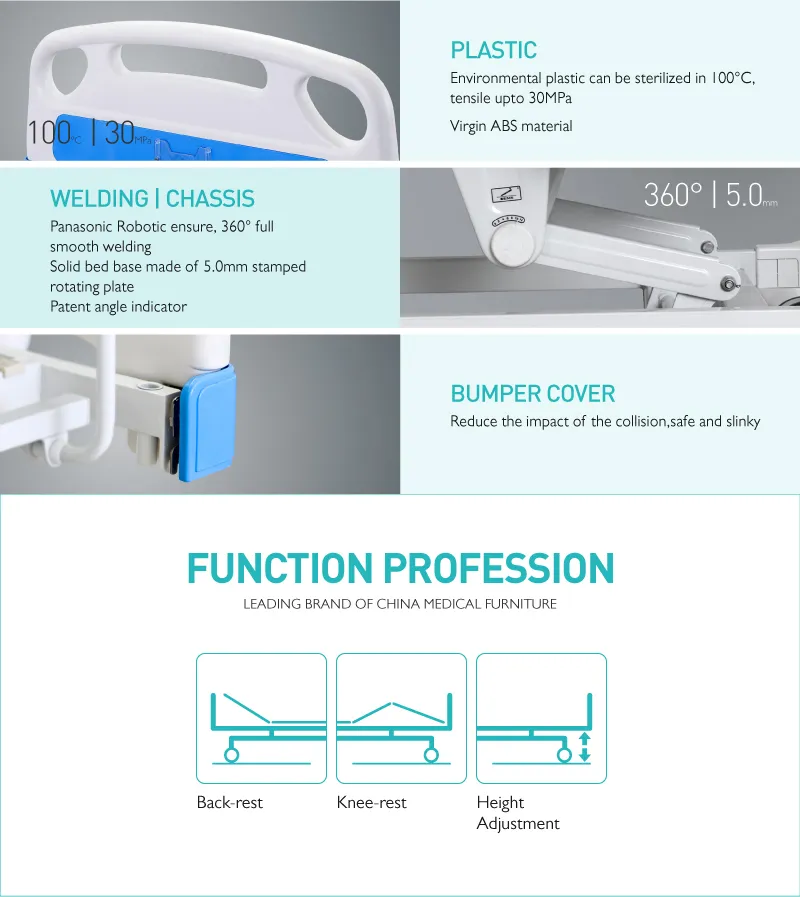

✔Environmental plastic can be sterilized in 100°C, tensile upto 30MPa
✔Solid bed base made of 5.0mm stamped rotating plate
✔Break spring keep qualified after 10,000 times uninterrupted break
✔11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm
✔Panasonic Robotic ensure 360° full smooth welding
Functions

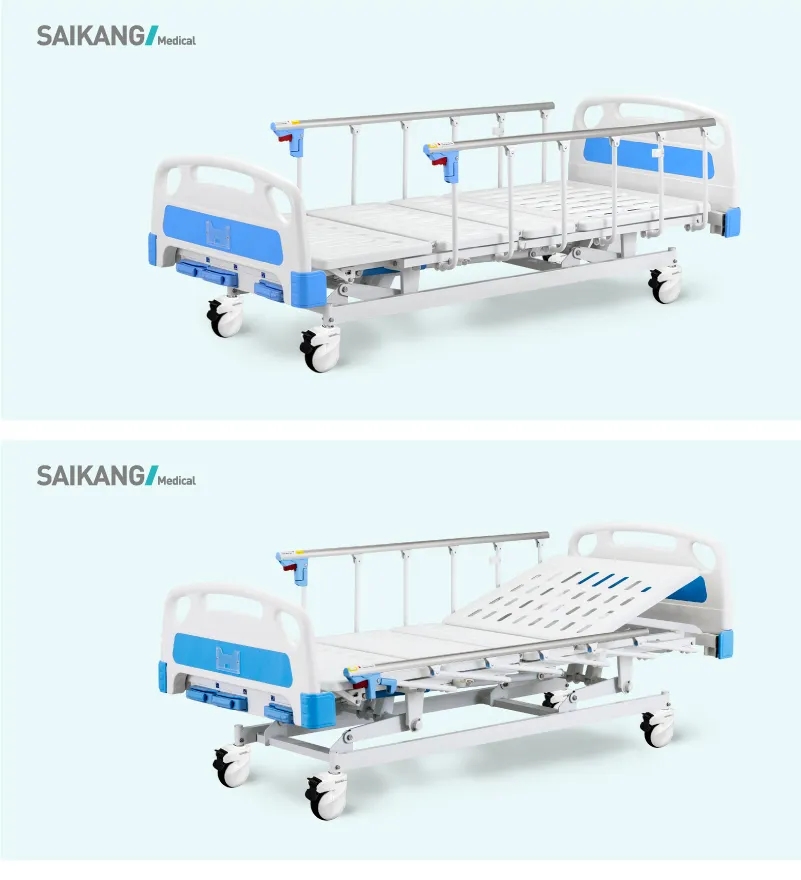

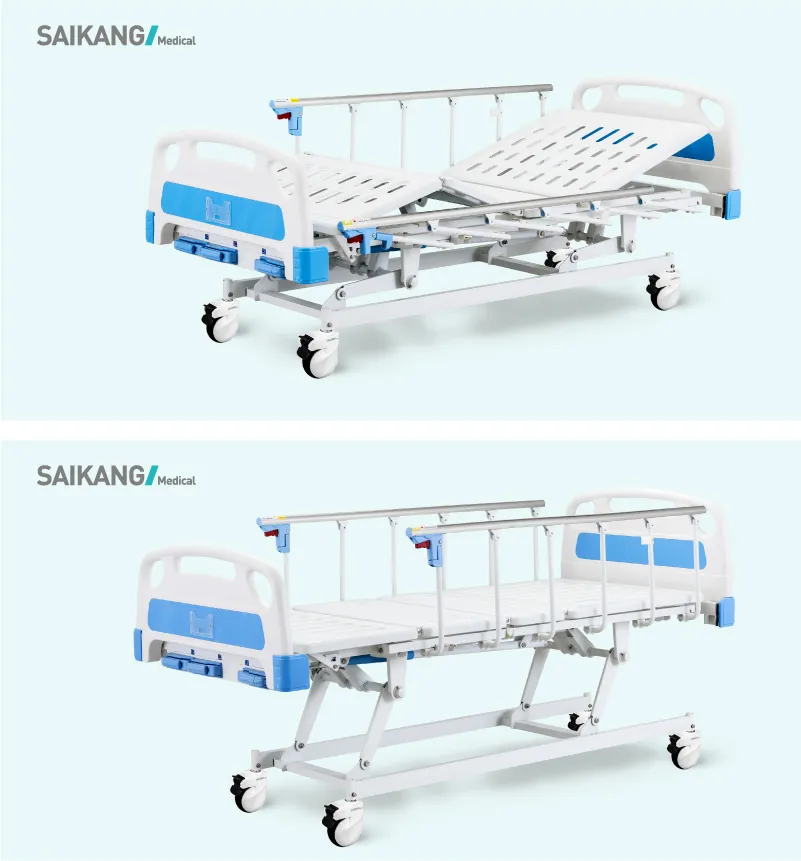

- 3 Functions: Backrest, Legrest and height adjustment
- External Length: 2160mm
- External Width: 950mm
- Mattress Platform: 1925*830mm
Accessories Details

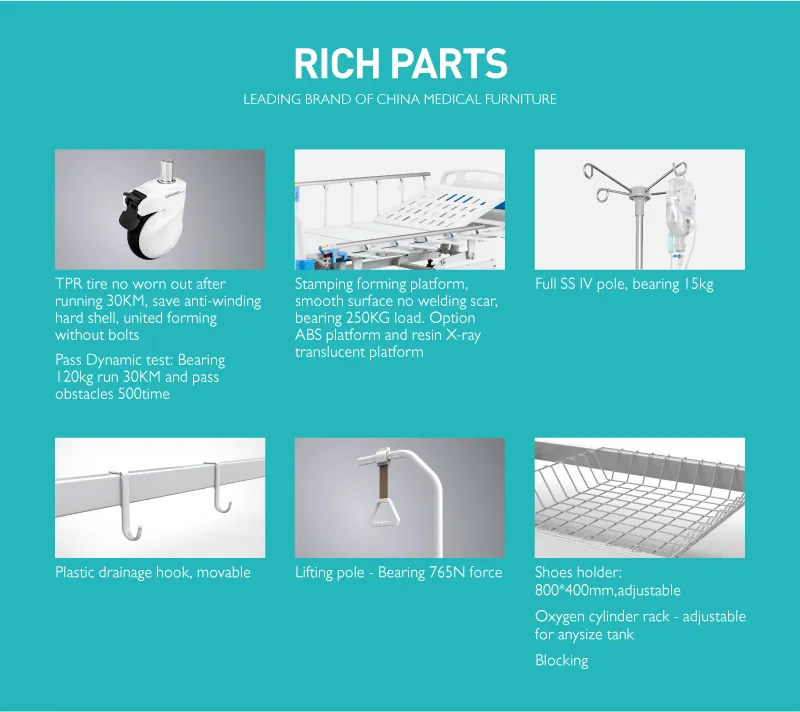

🔹Stamping forming platform, smooth surface no welding scar, bearing 250KG load.
🔹L-shaped foldable guardrail(Patent), bended tube, solid installing, 0 shaking, anti-pinch.
🔹Virgin ABS material bed ends with safe lock.
🔹TPR tire no worn out after running 30KM, save anti-winding hard shell.
🔹Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500 times.
🔹Full SS IV pole, bearing 15kg; Lifting pole - Bearing 765N force.
🔹Oxygen cylinder rack - adjustable for any size tank.
🔹Shoes holder: 800*400mm, adjustable.
Frequently Asked Questions
1. What are the main functions of the A3w medical bed?
The A3w is a three-function manual bed that allows for backrest adjustment (0-75°), knee-rest adjustment (0-35°), and height adjustment (420-740mm) using manual cranks.
2. What is the maximum load capacity for this bed?
The bed is designed with a solid stamped rotating plate base and can safely support a working load of up to 250kg.
3. What certifications does the A3w pediatric bed have?
This model is fully compliant with international medical standards and holds CE, FDA, and ISO13485 certifications.
4. How durable are the castors and braking system?
The bed features 5" covered TPR tires that show no wear after 30KM. The braking system is tested to remain qualified after 10,000 uninterrupted breaks.
5. Is the bed frame protected against bacteria and impact?
Yes, the frame undergoes an 11-process epoxy painting cycle. It is ASTM tested for anti-bacterial properties and the paint can resist up to a 50kg impact.
6. What accessories are included with the standard configuration?
The standard configuration includes 3 manual cranks, 4 covered castors, 1 set of foldable side rails, ABS bed ends with safe locks, an IV pole, and 2 drainage hooks.
