| Model NO. | iBed 3 | Folded | Folded |
| Using Ambient | Hospital | Function Numbers | Five-function |
| Certification | CE, ISO13485, ISO14001, ISO45001, ISO9001 | Condition | New |
| Dimensions | 2.35m * 1.15m * 0.78m | Safe Working Load | 230kg |
| Siderail Type | HDPE siderail | Actuators | 4 Linak actuators |
| HS Code | 9402900 | Production Capacity | 12,000 PCS/Year |

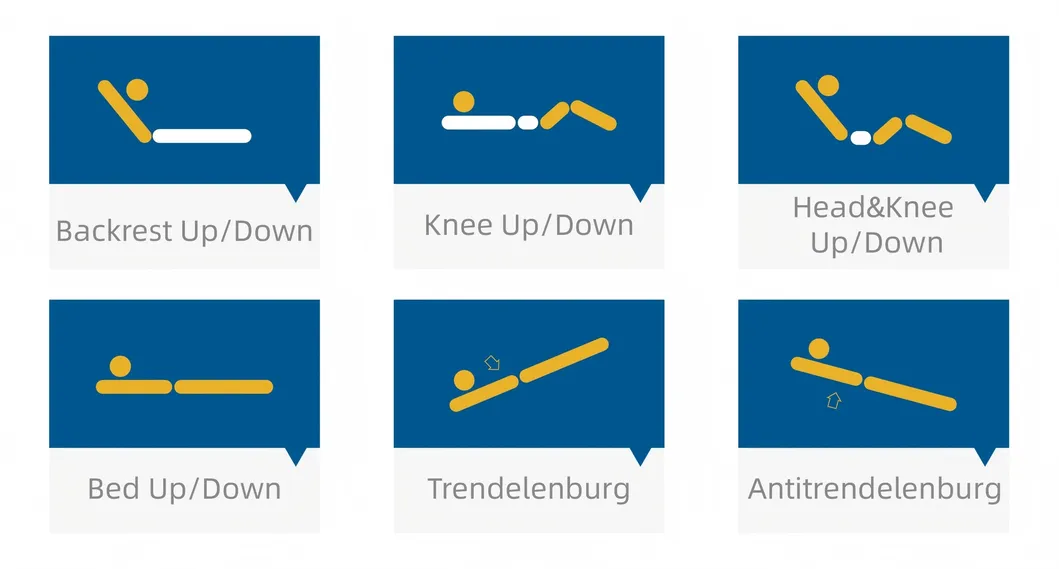

• Electric backrest Up/Down
• Electric Knee Up/Down
• Electric Backrest & Knee Up/Down
• Electric Bed Up/Down
• Electric Trendelenburg
• Electric Antitrendelenburg

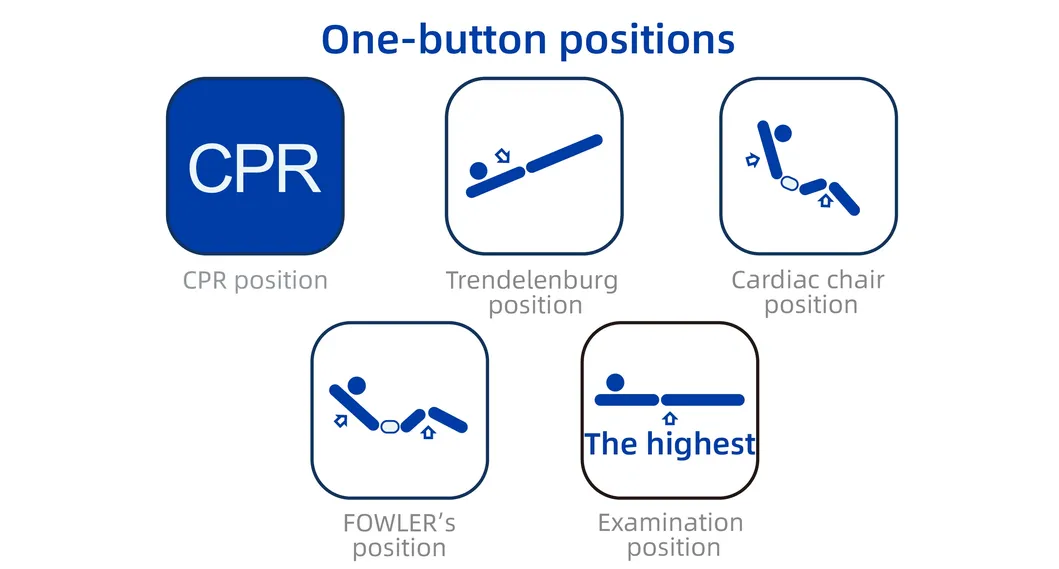

• One-Button cardiac chair position
• One-Button Trendelenburg Position
• One-Button Fowler Position
• One-Button Examination Position

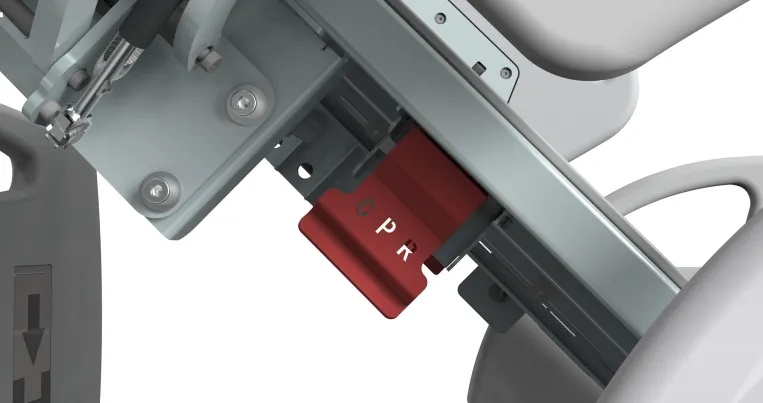

• One-Button CPR position

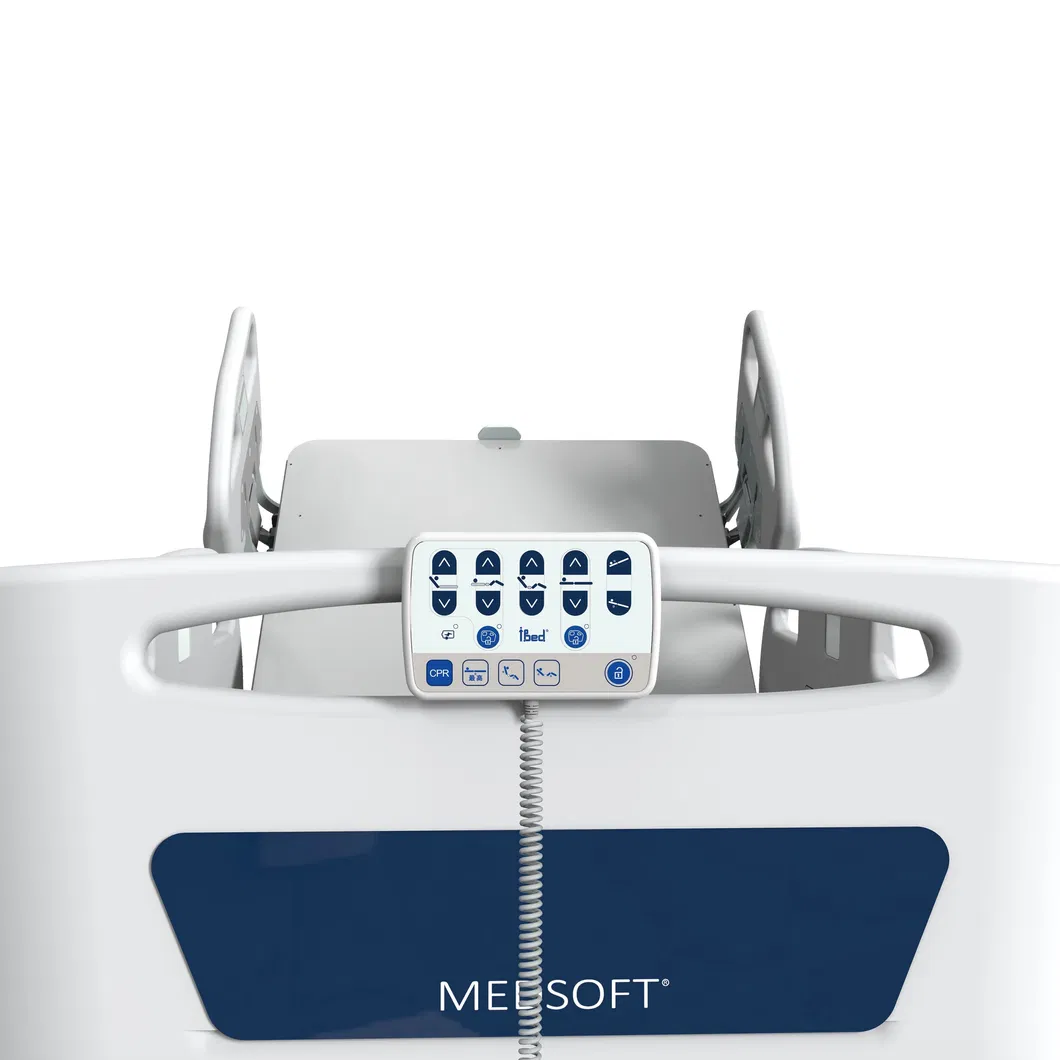

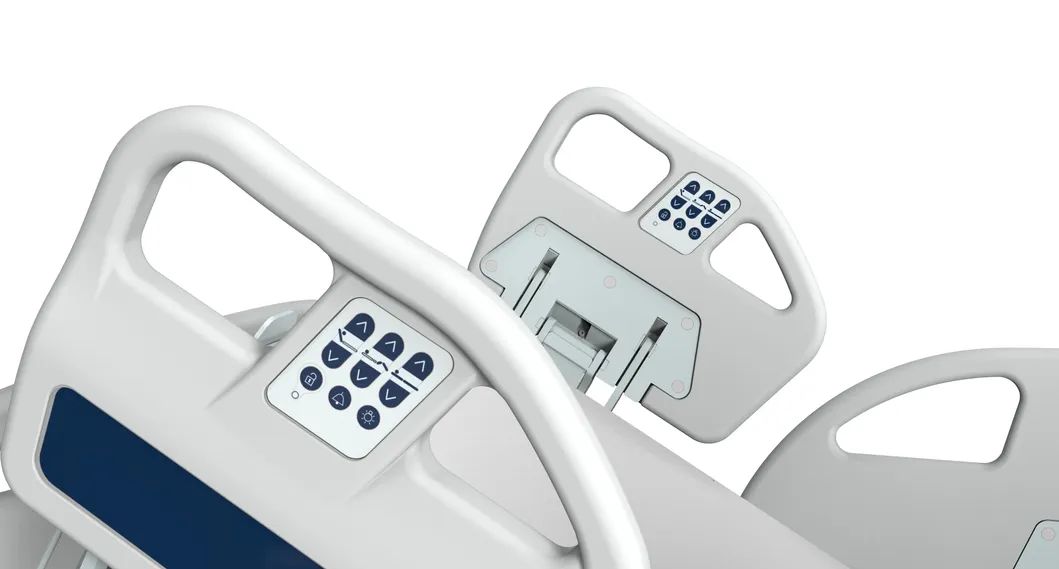

Multi-function controller including basic functions, critical one-button position, side guardrail lock, power supply status display, and controller switch key.
Designed for professional use with intuitive access to critical positions and bed safety locks.

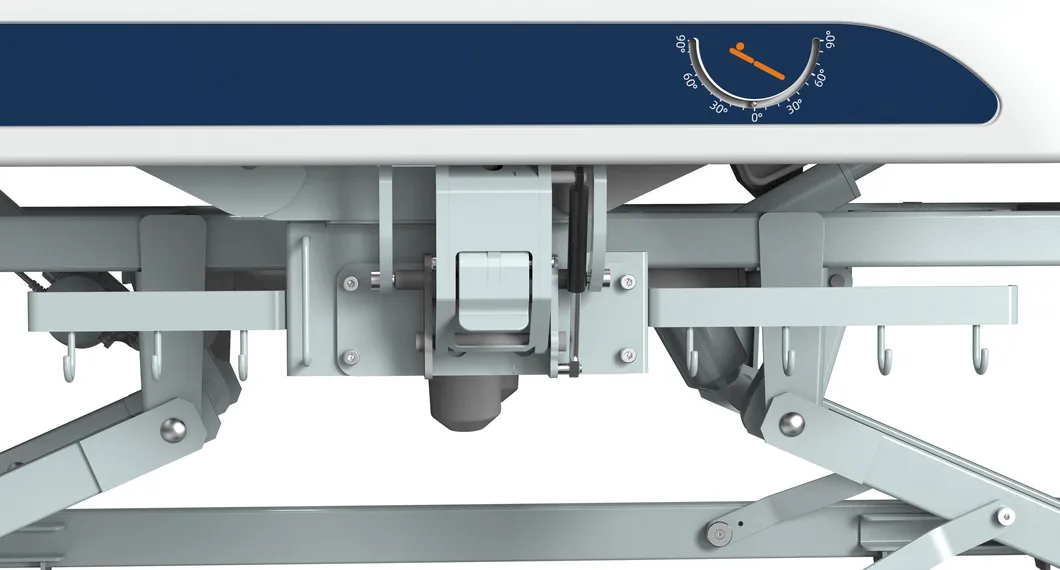

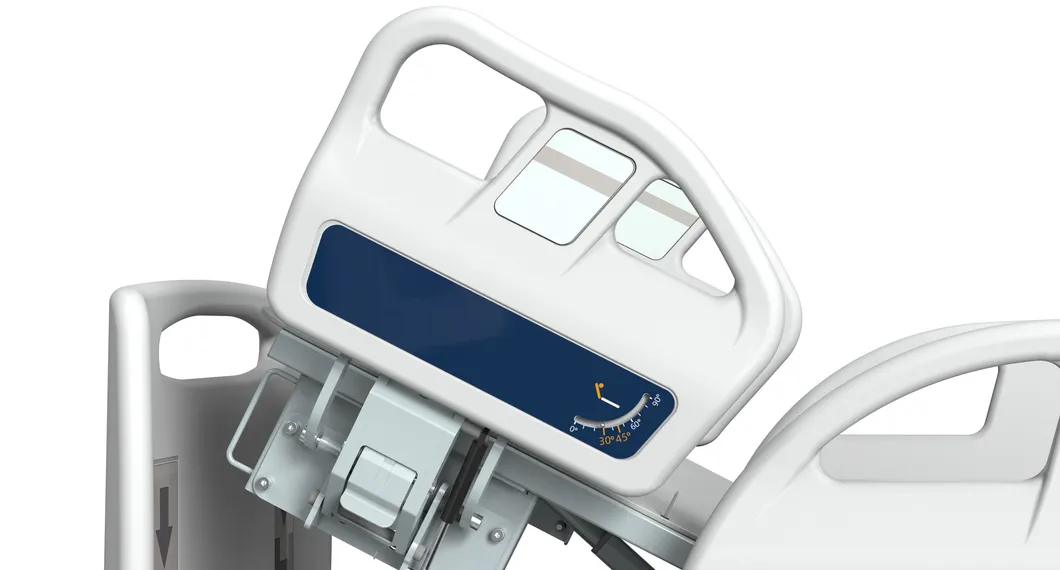

Clear indicators for backrest/bed. Raising the head 30-45° significantly reduces the incidence of VAP in critical care.

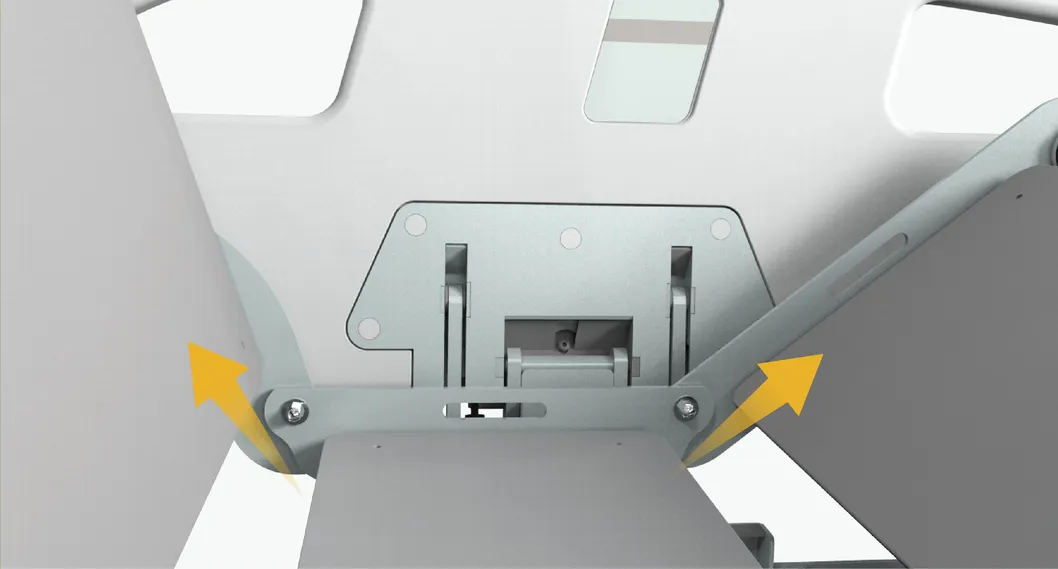

Reduces patient displacement and shear force when adjusting the body position, enhancing comfort and skin protection.
| Parameter | Details |
|---|---|
| Overall Size | 2200 * 995 * 480-850 mm |
| Mattress Platform | 2000 * 811 mm |
| Head Up/Down | 0-70° |
| Knee Up/Down | 0-35° |
| Trendelenburg / Anti-Trend | 0-16° |
| Angle Indicator | 0-90° |
